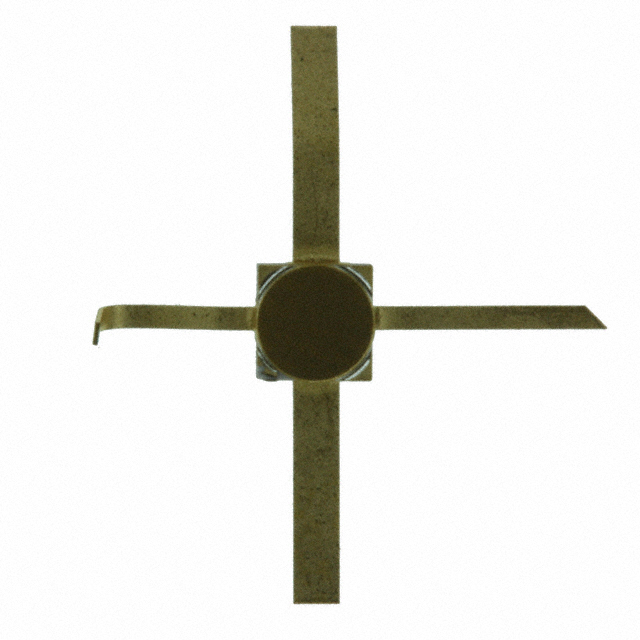

MSA-1110
IC RF AMP 50MHZ-1.6GHZManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited MSA-1110 is a surface-mount RF Amplifier IC operating from 50MHz to 1.6GHz. This component offers a gain range of 11.5dB to 13.5dB at a test frequency of 500MHz. It features a noise figure between 3.5dB and 4dB and a P1dB output power of 16dBm to 17.5dBm. Powering this device requires a supply voltage of 4.5V to 5.5V, with a typical current consumption of 90mA. The MSA-1110 is supplied in Bulk packaging and is housed in a 4-SMD (100 mil) package. This RF amplifier is suitable for applications across wireless communication systems, including cellular infrastructure and broadcast equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD (100 mil) |
| Mounting Type | Surface Mount |
| Frequency | 50MHz ~ 1.6GHz |
| RF Type | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Gain | 11.5dB ~ 13.5dB |
| Current - Supply | 90mA |
| Noise Figure | 3.5dB ~ 4dB |
| P1dB | 16dBm ~ 17.5dBm |
| Test Frequency | 500MHz |
| Supplier Device Package | - |
