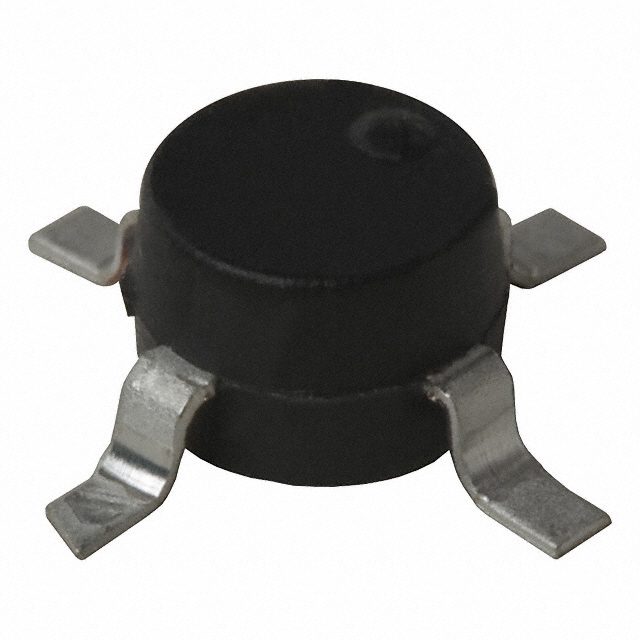

MSA-1105-TR1G
IC AMP ISM 50MHZ-1.3GHZ 05 PLASTManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
The Broadcom Limited MSA-1105-TR1G is a high-performance RF amplifier designed for operation across a wide frequency spectrum from 50MHz to 1.3GHz. This component is optimized for applications in the ISM, PCS, WLL, and 802.16/WiMax sectors. It features a typical gain range of 10dB to 12dB at 500MHz, with a noise figure of 3.6dB and a P1dB output power of 17.5dBm. The MSA-1105-TR1G operates from a supply voltage of 4.4V to 6.6V, drawing a quiescent current of 80mA. Supplied in a 05 Plastic Package, this device is available on a Tape & Reel (TR) for efficient surface mount assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD (05 Plastic) |
| Mounting Type | Surface Mount |
| Frequency | 50MHz ~ 1.3GHz |
| RF Type | ISM, PCS, WLL, 802.16/WiMax |
| Voltage - Supply | 4.4V ~ 6.6V |
| Gain | 10dB ~ 12dB |
| Current - Supply | 80mA |
| Noise Figure | 3.6dB |
| P1dB | 17.5dBm |
| Test Frequency | 500MHz |
| Supplier Device Package | 05 Plastic Package |
