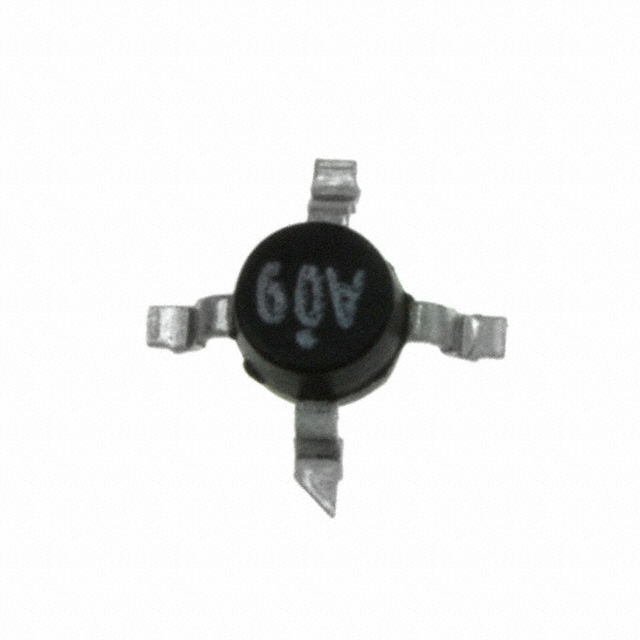

MSA-0986-BLKG
IC AMP 100MHZ-5.5GHZ 86 PLASTICManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited MSA-0986-BLKG is a high-performance RF amplifier designed for demanding applications. This component operates across a wide frequency range of 100MHz to 5.5GHz, offering gains between 6dB and 7.2dB at a test frequency of 2GHz. With a typical noise figure of 6.2dB and a P1dB of 10.5dBm, it ensures excellent signal integrity. The MSA-0986-BLKG is housed in an 86 Plastic Package (SOT-86) for surface mounting and requires a supply voltage between 6.2V and 9.4V, drawing a supply current of 65mA. This robust amplifier finds application in telecommunications infrastructure, satellite communications, and broadband wireless systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-86 |
| Mounting Type | Surface Mount |
| Frequency | 100MHz ~ 5.5GHz |
| RF Type | - |
| Voltage - Supply | 6.2V ~ 9.4V |
| Gain | 6dB ~ 7.2dB |
| Current - Supply | 65mA |
| Noise Figure | 6.2dB |
| P1dB | 10.5dBm |
| Test Frequency | 2GHz |
| Supplier Device Package | 86 Plastic Package |
