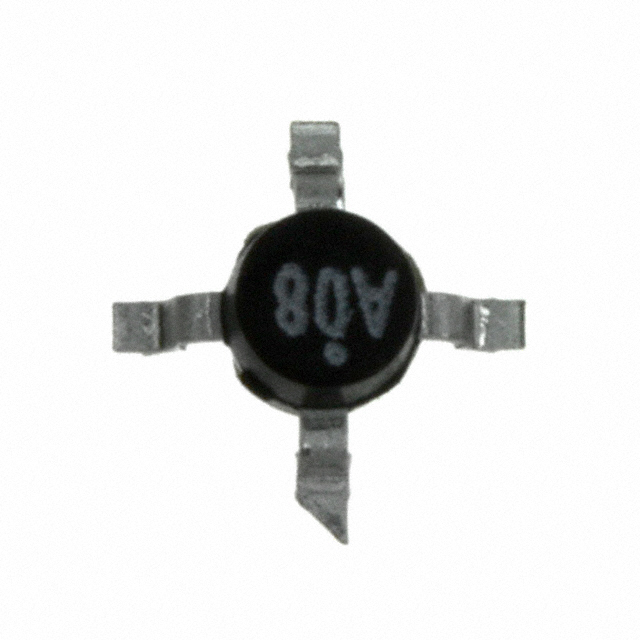

MSA-0886-BLKG
IC AMP 0HZ-5.5GHZ 86 PLASTIC PKGManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
The Broadcom Limited MSA-0886-BLKG is a high-performance RF amplifier designed for broadband applications. This surface mount component operates across a frequency range of 0Hz to 5.5GHz, offering a typical gain of 20.5dB to 22.5dB at 1GHz. The device exhibits a noise figure of 3.3dB and a P1dB output power of 12.5dBm, making it suitable for signal amplification in demanding RF systems. It requires a supply voltage between 6.2V and 9.4V, with a typical current draw of 65mA. The MSA-0886-BLKG is supplied in a bulk package, featuring an 86 plastic package (SOT-86) for efficient integration into printed circuit boards. This component finds application in various communication and test equipment sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-86 |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 5.5GHz |
| RF Type | - |
| Voltage - Supply | 6.2V ~ 9.4V |
| Gain | 20.5dB ~ 22.5dB |
| Current - Supply | 65mA |
| Noise Figure | 3.3dB |
| P1dB | 12.5dBm |
| Test Frequency | 1GHz |
| Supplier Device Package | 86 Plastic Package |
