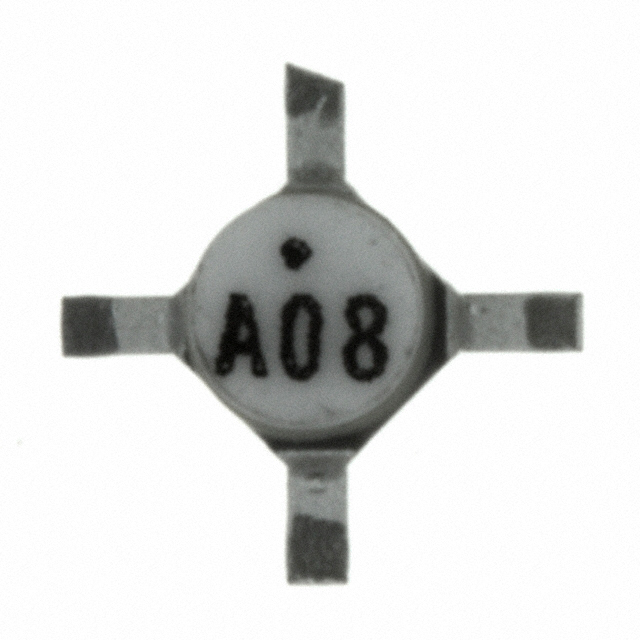

MSA-0836-BLKG
IC RF AMP 500MHZ-6GHZ 36 MICRO-XManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited MSA-0836-BLKG is a High Linearity RF Amplifier designed for operation from 500MHz to 6GHz. This device offers a typical gain range of 22dB to 25dB at a test frequency of 1GHz. Key performance specifications include a noise figure of 3dB and a P1dB output power of 12.5dBm. The MSA-0836-BLKG operates with a supply voltage range of 7V to 8.4V and draws a current of 80mA. Packaged in a 36 micro-X surface-mount configuration, this component is suitable for demanding applications in wireless infrastructure and broadband communications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD (36 micro-X) |
| Mounting Type | Surface Mount |
| Frequency | 500MHz ~ 6GHz |
| RF Type | - |
| Voltage - Supply | 7V ~ 8.4V |
| Gain | 22dB ~ 25dB |
| Current - Supply | 80mA |
| Noise Figure | 3dB |
| P1dB | 12.5dBm |
| Test Frequency | 1GHz |
| Supplier Device Package | 36 micro-X |
