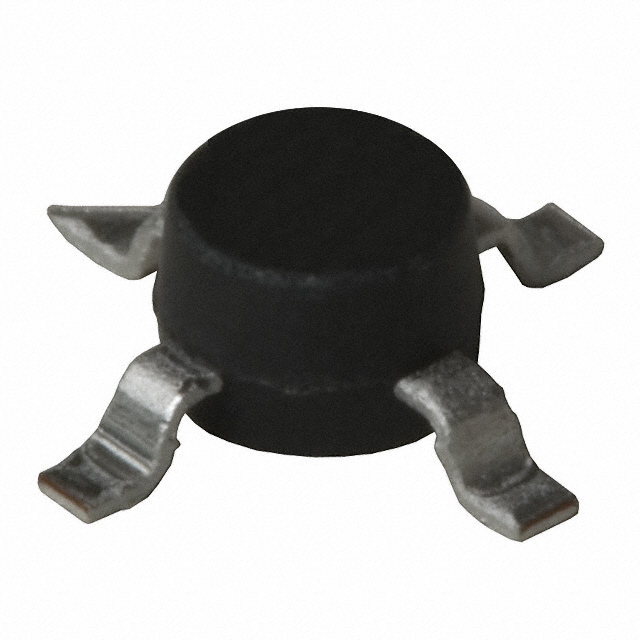

MSA-0686-TR1
IC AMP ISM 0HZ-800MHZ 86 PLASTManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited's MSA-0686-TR1 is an RF amplifier designed for high-performance applications. This component operates across a wide frequency range from 0Hz to 800MHz, supporting ISM, PCS, WLL, and 802.16/WiMax standards. The device features a typical gain of 18.5dB at 500MHz and a noise figure of 3dB, ensuring signal integrity. It is supplied in a compact SOT-86 plastic package, suitable for surface mount assembly. The MSA-0686-TR1 requires a supply voltage between 2.8V and 4.2V, with a typical current draw of 50mA. This RF amplifier is utilized in wireless communication systems and other RF front-end designs.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-86 |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 800MHz |
| RF Type | ISM, PCS, WLL, 802.16/WiMax |
| Voltage - Supply | 2.8V ~ 4.2V |
| Gain | 18.5dB |
| Current - Supply | 50mA |
| Noise Figure | 3dB |
| P1dB | 2dBm |
| Test Frequency | 500MHz |
| Supplier Device Package | 86 Plastic Package |
