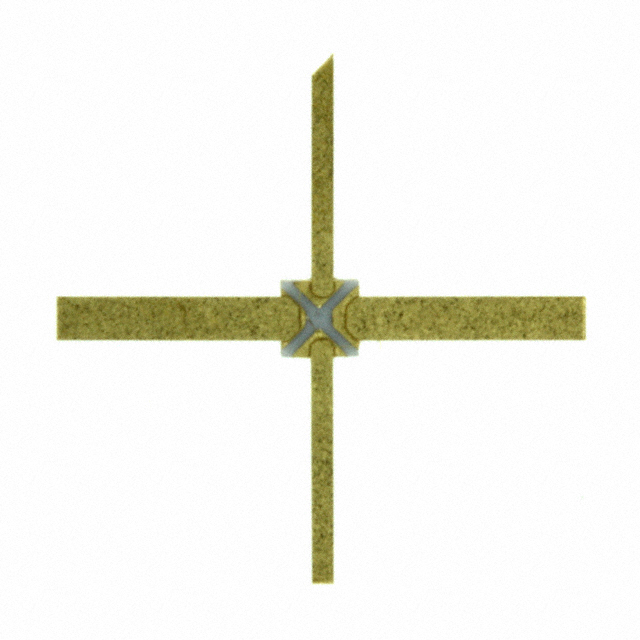

MSA-0670
IC AMP 0HZ-4GHZ 70 MIL PACKAGEManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited MSA-0670 RF Amplifier. This surface-mount device offers a broad frequency range from 0Hz to 4GHz with a voltage supply requirement of 3.1V to 3.9V and a typical current draw of 50mA. The MSA-0670 provides a gain of 19dB to 20.5dB at a test frequency of 500MHz, with a noise figure between 2.8dB and 4dB. The amplifier features a P1dB of 2dBm and is housed in a compact 70 mil, 4-SMD package. This component is suitable for applications in wireless communications infrastructure and broadband networking.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD (70 mil) |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 4GHz |
| RF Type | - |
| Voltage - Supply | 3.1V ~ 3.9V |
| Gain | 19dB ~ 20.5dB |
| Current - Supply | 50mA |
| Noise Figure | 2.8dB ~ 4dB |
| P1dB | 2dBm |
| Test Frequency | 500MHz |
| Supplier Device Package | 70 mil Package |
