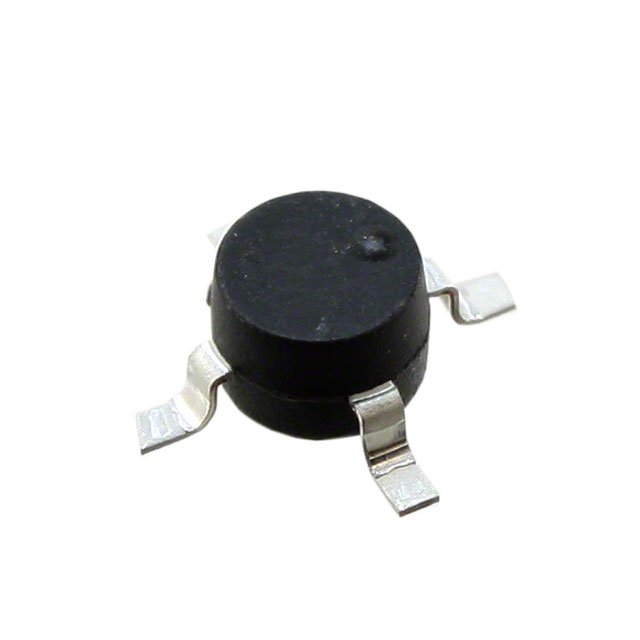

MSA-0505-STRG
IC AMP ISM 20MHZ-2.3GHZ 05 PLASTManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
The Broadcom Limited MSA-0505-STRG is a high-performance RF amplifier designed for broad application across various industries including wireless communications, defense, and test and measurement. This component operates within the 20MHz to 2.3GHz frequency range, making it suitable for ISM band applications and beyond. Featuring a typical gain of 7dB at 1GHz and a P1dB of 18dBm, the MSA-0505-STRG offers robust signal amplification. Its noise figure is rated at a low 6.5dB, ensuring minimal signal degradation. The device is supplied in a compact 4-SMD (05 Plastic Package) for efficient surface mounting. It operates from a supply voltage of 6.7V to 10.1V, with a typical current draw of 80mA. The MSA-0505-STRG is delivered in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD (05 Plastic) |
| Mounting Type | Surface Mount |
| Frequency | 20MHz ~ 2.3GHz |
| RF Type | ISM |
| Voltage - Supply | 6.7V ~ 10.1V |
| Gain | 7dB |
| Current - Supply | 80mA |
| Noise Figure | 6.5dB |
| P1dB | 18dBm |
| Test Frequency | 1GHz |
| Supplier Device Package | 05 Plastic Package |
