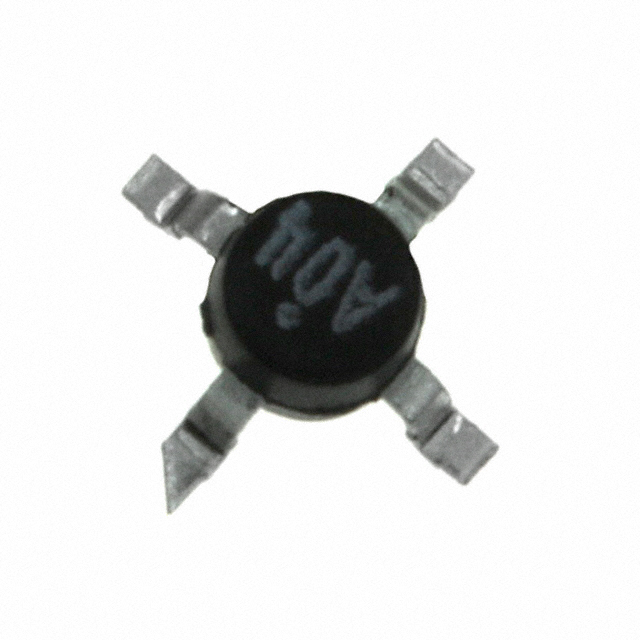

MSA-0486-BLKG
IC AMP 0HZ-5GHZ 86 PLASTIC PKGManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited MSA-0486-BLKG is a broadband RF amplifier IC operating from 0Hz to 5GHz. This surface mount component, packaged in a SOT-86 (86 Plastic Package), offers a typical gain of 7dB to 8dB at 1GHz. It features a noise figure of 7dB and a P1dB of 12.5dBm. The device operates with a supply voltage range of 4.2V to 6.3V and draws a current of 85mA. The MSA-0486-BLKG is utilized in various applications requiring wideband amplification, including test and measurement equipment, wireless infrastructure, and general RF signal processing. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-86 |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 5GHz |
| RF Type | - |
| Voltage - Supply | 4.2V ~ 6.3V |
| Gain | 7dB ~ 8dB |
| Current - Supply | 85mA |
| Noise Figure | 7dB |
| P1dB | 12.5dBm |
| Test Frequency | 1GHz |
| Supplier Device Package | 86 Plastic Package |
