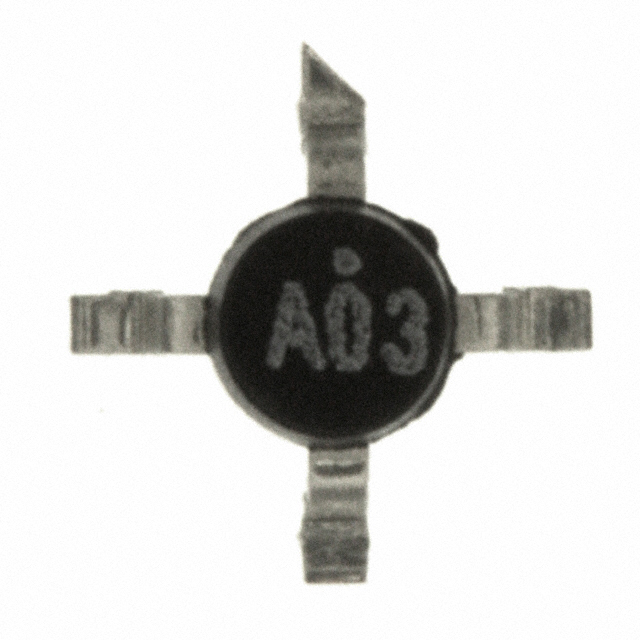

MSA-0386-TR1G
IC AMP 2.4GHZ 86 PLASTIC PACKAGEManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited MSA-0386-TR1G is a surface-mount RF amplifier IC operating at 2.4GHz. This component, housed in an 86 plastic package, features a nominal gain of 10dB to 12dB at 1GHz, with a P1dB output power of 10dBm to 12dBm. Designed for efficient operation, it draws a typical supply current of 70mA from a 4V to 6V supply. The noise figure is rated at 6dB. This device is commonly utilized in wireless communication systems and other radio frequency applications. The MSA-0386-TR1G is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-86 |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| RF Type | - |
| Voltage - Supply | 4V ~ 6V |
| Gain | 10dB ~ 12dB |
| Current - Supply | 70mA |
| Noise Figure | 6dB |
| P1dB | 10dBm ~ 12dBm |
| Test Frequency | 1GHz |
| Supplier Device Package | 86 Plastic Package |
