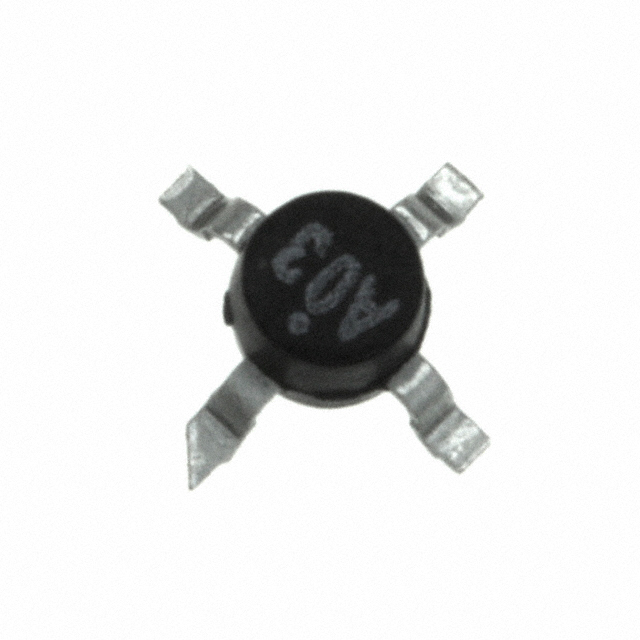

MSA-0386-BLKG
IC AMP 0HZ-5GHZ 86 PLASTIC PKGManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited MSA-0386-BLKG is a surface-mount RF amplifier IC. This component operates across a broad frequency range from 0Hz to 5GHz, offering a typical gain of 10dB to 12dB at 1GHz. The noise figure is specified at 6dB, with a P1dB output power of 10dBm. Designed for robust performance, it requires a supply voltage between 4V and 6V and draws a current of 70mA. The MSA-0386-BLKG is housed in an 86 Plastic Package, specifically the SOT-86, and is supplied in bulk packaging. This amplifier is suitable for applications in wireless communications infrastructure, test and measurement equipment, and other high-frequency systems requiring reliable signal amplification.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-86 |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 5GHz |
| RF Type | - |
| Voltage - Supply | 4V ~ 6V |
| Gain | 10dB ~ 12dB |
| Current - Supply | 70mA |
| Noise Figure | 6dB |
| P1dB | 10dBm |
| Test Frequency | 1GHz |
| Supplier Device Package | 86 Plastic Package |
