MSA-0311-TR2G
IC AMP ISM 0HZ-2.3GHZ SOT143-4Manufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More

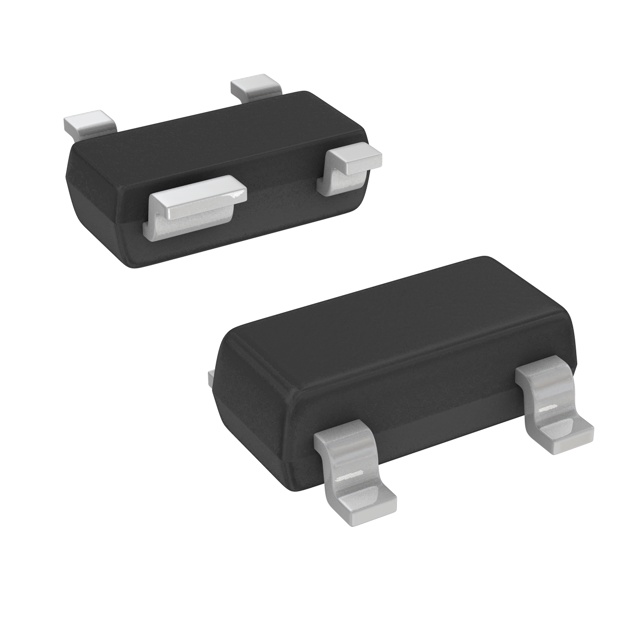

Broadcom Limited MSA-0311-TR2G is a surface-mount RF amplifier designed for operation across a wide frequency range from 0Hz to 2.3GHz. This component is suitable for applications in ISM, PCS, WLL, and 802.16/WiMax standards, offering a typical gain of 9dB to 11dB at 1GHz. It features a low noise figure of 6dB and a P1dB compression point of 9dBm. The device operates with a supply voltage range of 3.8V to 5.6V and draws a supply current of 35mA. Packaged in a SOT-143-4 (TO-253-4, TO-253AA) surface-mount package, it is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-253-4, TO-253AA |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 2.3GHz |
| RF Type | ISM, PCS, WLL, 802.16/WiMax |
| Voltage - Supply | 3.8V ~ 5.6V |
| Gain | 9dB ~ 11dB |
| Current - Supply | 35mA |
| Noise Figure | 6dB |
| P1dB | 9dBm |
| Test Frequency | 1GHz |
| Supplier Device Package | SOT-143-4 |
Request a Quote
