MGA-638P8-TR1G
IC AMP CDMA 450MHZ-1.5GHZ 8DFNManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More

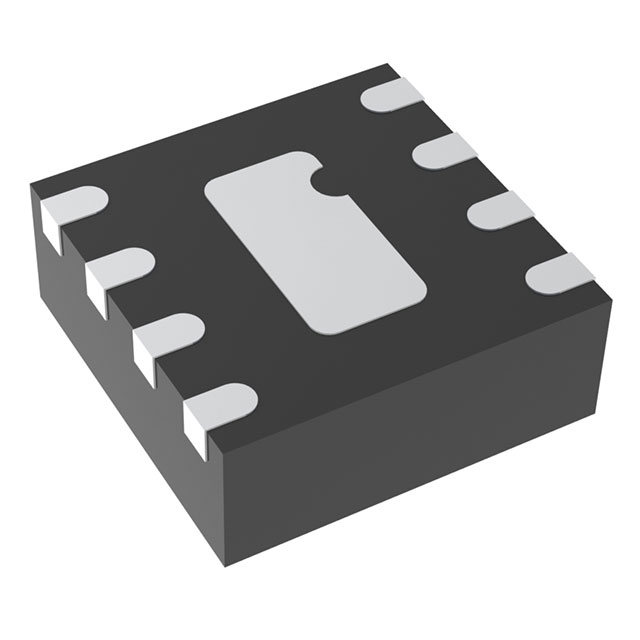

Broadcom Limited MGA-638P8-TR1G is a surface-mount RF amplifier IC designed for multi-band wireless applications. This component operates across a frequency range of 450MHz to 1.5GHz, supporting cellular standards including CDMA, GSM, TDMA, and WCDMA. It delivers a typical gain of 17.3dB at 2.5GHz test frequency, with a noise figure of 0.87dB and a P1dB output power of 22.2dB. The device requires a supply current of 84mA and is housed in an 8-DFN (2x2) package with an exposed pad, facilitating efficient thermal management. This amplifier is suitable for use in mobile infrastructure, cellular handsets, and other wireless communication systems. The MGA-638P8-TR1G is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 450MHz ~ 1.5GHz |
| RF Type | CDMA, GSM, TDMA, WCDMA |
| Voltage - Supply | - |
| Gain | 17.3dB |
| Current - Supply | 84mA |
| Noise Figure | 0.87dB |
| P1dB | 22.2dB |
| Test Frequency | 2.5GHz |
| Supplier Device Package | 8-DFN (2x2) |
