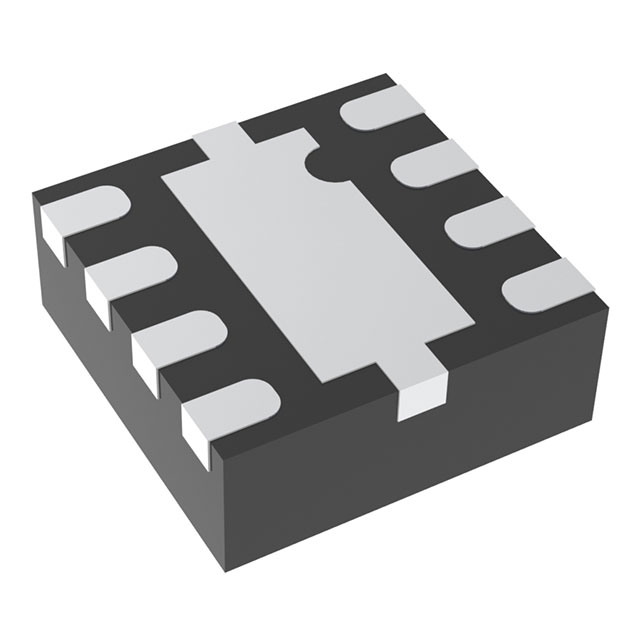

MGA-631P8-TR2G
IC AMP CDMA 400MHZ-1.5GHZ 8TSLPManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
The Broadcom Limited MGA-631P8-TR2G is a monolithic RF amplifier designed for high-performance wireless applications. This component operates across a frequency range of 400MHz to 1.5GHz, supporting CDMA, GPS, GSM, and ISM RF types. Featuring a typical gain of 17.5dB at 900MHz, it delivers a P1dB output power of 17.5dBm and a low noise figure of 0.53dB. The device is housed in an 8-TSLP (2x2) package with an exposed pad, suitable for surface mounting. It requires a supply voltage of 4V and draws a current of 54mA. This amplifier is commonly utilized in mobile infrastructure, base stations, and portable communication devices.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 400MHz ~ 1.5GHz |
| RF Type | CDMA, GPS, GSM, ISM |
| Voltage - Supply | 4V |
| Gain | 17.5dB |
| Current - Supply | 54mA |
| Noise Figure | 0.53dB |
| P1dB | 17.5dBm |
| Test Frequency | 900MHz |
| Supplier Device Package | 8-TSLP (2x2) |
Request a Quote
