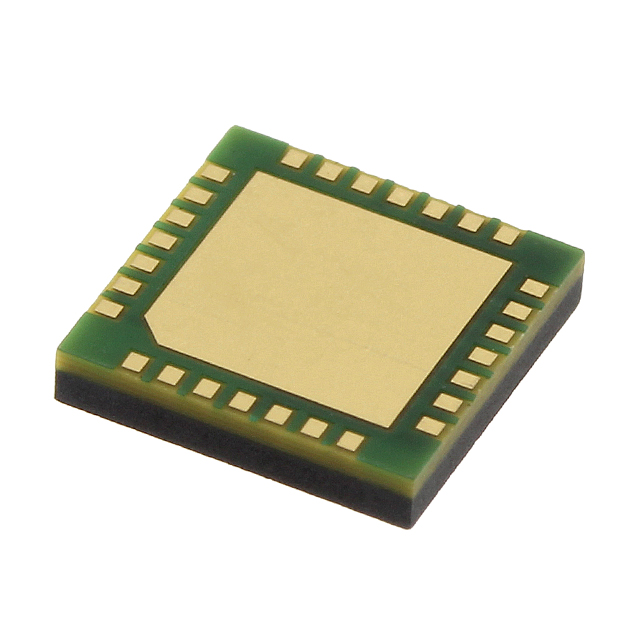

MGA-43728-TR1G
IC AMP GPS 2.62GHZ-2.69GHZ 28QFNManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
The Broadcom Limited MGA-43728-TR1G is a high-performance RF amplifier IC designed for general-purpose applications within the 2.62GHz to 2.69GHz frequency range. This component offers a substantial gain of 38.3dB at a test frequency of 2.65GHz, coupled with a robust P1dB output power of 36dBm. Operating from a 5V supply, it draws a typical current of 350mA. The MGA-43728-TR1G is supplied in a 28-QFN (5x5) package, featuring an exposed pad for enhanced thermal management, and is delivered on tape and reel for automated assembly. Its technical specifications make it suitable for demanding applications in the wireless communication infrastructure and satellite navigation sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 2.62GHz ~ 2.69GHz |
| RF Type | General Purpose |
| Voltage - Supply | 5V |
| Gain | 38.3dB |
| Current - Supply | 350mA |
| Noise Figure | - |
| P1dB | 36dBm |
| Test Frequency | 2.65GHz |
| Supplier Device Package | 28-QFN (5x5) |
