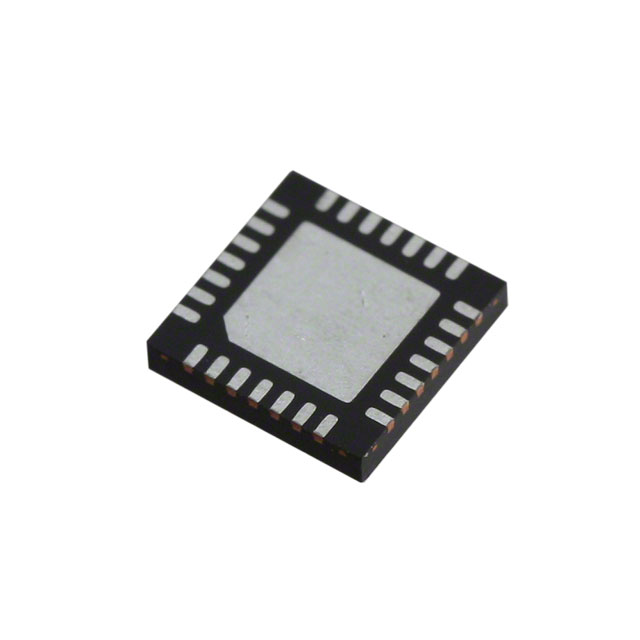

MGA-43228-BLKG
IC AMP 802.16 2.3-2.5GHZ 28QFNManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited MGA-43228-BLKG is a high-performance RF amplifier IC designed for 802.16 WiMAX applications. Operating within the 2.3GHz to 2.5GHz frequency range, this component offers a typical gain of 38.5dB and a P1dB output power of 35.5dBm at 2.4GHz. The device features a low noise figure of 2.1dB, ensuring excellent signal integrity in demanding wireless infrastructure and broadband access systems. It requires a 5V supply voltage and draws a current of 500mA. The MGA-43228-BLKG is housed in a 28-QFN (5x5) surface-mount package with an exposed pad, facilitating efficient thermal management. This component is suitable for base station and subscriber equipment in the wireless telecommunications industry.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDownload Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 28-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 2.3GHz ~ 2.5GHz |
| RF Type | 802.16 WiMAX |
| Voltage - Supply | 5V |
| Gain | 38.5dB |
| Current - Supply | 500mA |
| Noise Figure | 2.1dB |
| P1dB | 35.5dBm |
| Test Frequency | 2.4GHz |
| Supplier Device Package | 28-QFN (5x5) |
