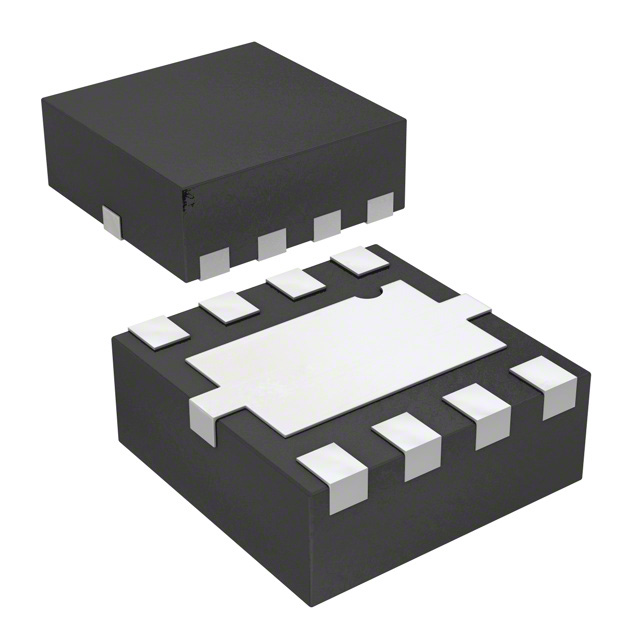

MGA-425P8-BLK
IC RF AMP ISM 2GHZ-10GHZ 8LPCCManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
The Broadcom Limited MGA-425P8-BLK is a high-performance RF amplifier designed for operation across the 2GHz to 10GHz frequency spectrum. This monolithic microwave integrated circuit (MMIC) is optimized for ISM and 802.11a/WiFi applications, offering a typical gain of 14.5dB to 17.5dB at 5.25GHz. It features a low noise figure of 1.7dB and a P1dB output power ranging from 18.25dBm to 20.3dBm, ensuring robust signal amplification. The device operates from a 3.3V supply with a current consumption of 51mA to 65mA. Packaged in an 8-LPCC (2x2) surface-mount configuration with an exposed pad, the MGA-425P8-BLK is suitable for demanding wireless communication systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 2GHz ~ 10GHz |
| RF Type | ISM, 802.11a/WiFi |
| Voltage - Supply | 3.3V |
| Gain | 14.5dB ~ 17.5dB |
| Current - Supply | 51mA ~ 65mA |
| Noise Figure | 1.7dB |
| P1dB | 18.25dBm ~ 20.3dBm |
| Test Frequency | 5.25GHz |
| Supplier Device Package | 8-LPCC (2x2) |
Request a Quote
