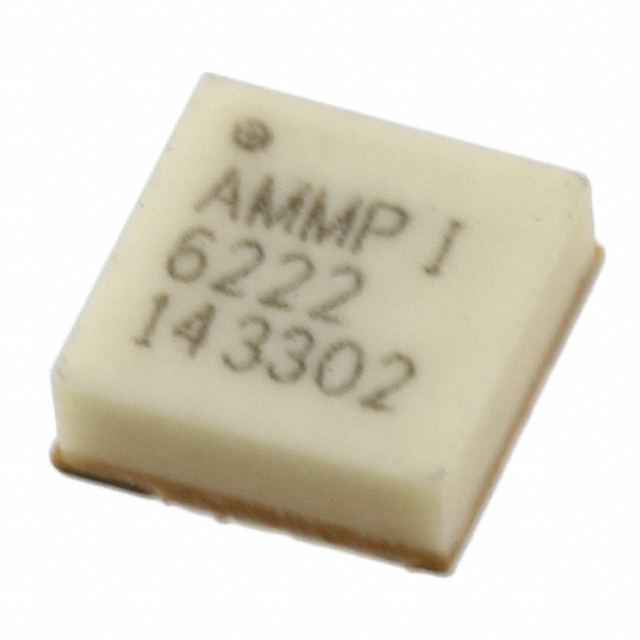

AMMP-6222-BLKG
IC RF AMP WIMAX 7GHZ-21GHZ 8SMDManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited AMMP-6222-BLKG is a high-performance RF amplifier IC designed for WiMAX applications operating across a broad frequency range of 7GHz to 21GHz. This component delivers a typical gain of 24dB with a low noise figure of 2.3dB, ensuring excellent signal integrity. The device features a P1dB output power of 15.5dBm, making it suitable for demanding wireless infrastructure and communication systems. It operates with a supply voltage range of 3V to 5V and draws a current of 120mA. The AMMP-6222-BLKG is housed in an 8-SMD (5x5) package, facilitating surface mount integration. Its robust performance characteristics make it a key component in base stations, point-to-point radios, and other advanced wireless communication platforms.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDownload Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 8-LQFN |
| Mounting Type | Surface Mount |
| Frequency | 7GHz ~ 21GHz |
| RF Type | WiMAX |
| Voltage - Supply | 3V ~ 5V |
| Gain | 24dB |
| Current - Supply | 120mA |
| Noise Figure | 2.3dB |
| P1dB | 15.5dBm |
| Test Frequency | - |
| Supplier Device Package | 8-SMD (5x5) |
