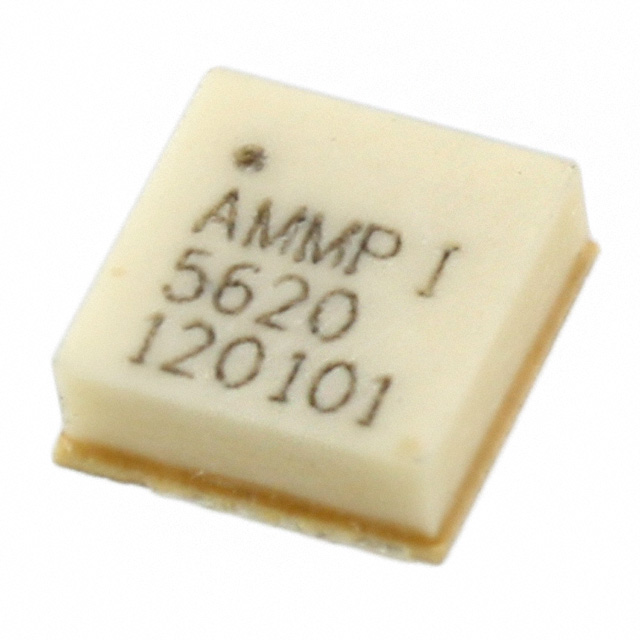

AMMP-5620-BLKG
IC RF AMP GPS 6GHZ-20GHZ 8SMDManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited AMMP-5620-BLKG is a general-purpose RF amplifier designed for operation across a wide frequency range from 6GHz to 20GHz. This component offers a typical gain of 17.5dB at a test frequency of 18GHz, with a Noise Figure of 5.1dB, making it suitable for demanding RF applications. The device features a P1dB of 14.8dBm, indicating its linearity performance. It operates from a 5V supply with a current draw of 95mA. The AMMP-5620-BLKG is provided in an 8-SMD (5x5) package, specifically an 8-LQFN, suitable for surface mounting. This RF amplifier finds application in various sectors including telecommunications, radar systems, and satellite communications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDownload Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 8-LQFN |
| Mounting Type | Surface Mount |
| Frequency | 6GHz ~ 20GHz |
| RF Type | General Purpose |
| Voltage - Supply | 5V |
| Gain | 17.5dB |
| Current - Supply | 95mA |
| Noise Figure | 5.1dB |
| P1dB | 14.8dBm |
| Test Frequency | 18GHz |
| Supplier Device Package | 8-SMD (5x5) |
