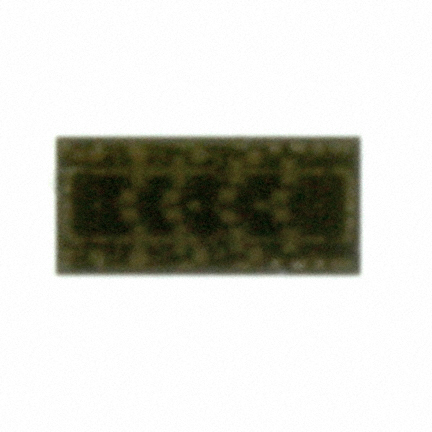

AMMC-6345-W10
IC RF AMP VSAT 20GHZ-45GHZ MODManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited AMMC-6345-W10 is a high-performance RF amplifier module designed for demanding VSAT applications. This surface-mount component operates across a frequency range of 20GHz to 45GHz, offering a typical gain of 18dB. With a P1dB output power of 24dBm and a supply current of 450mA at a 5V supply voltage, the AMMC-6345-W10 provides efficient amplification for advanced wireless communication systems. Its robust module package ensures reliable integration into complex RF front-end designs. This component is well-suited for use in satellite communications and other high-frequency radio systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Frequency | 20GHz ~ 45GHz |
| RF Type | VSAT |
| Voltage - Supply | 5V |
| Gain | 18dB |
| Current - Supply | 450mA |
| Noise Figure | - |
| P1dB | 24dBm |
| Test Frequency | 20GHz ~ 45GHz |
| Supplier Device Package | Module |
