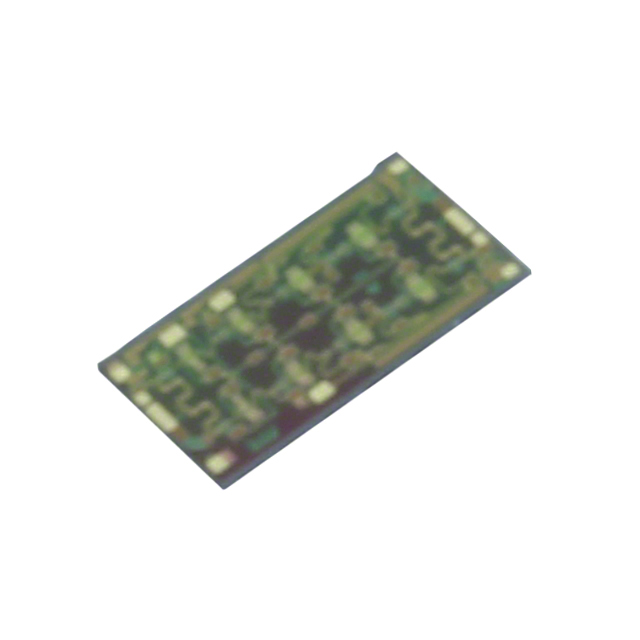

AMMC-6333-W10
IC RF AMP VSAT 18GHZ-33GHZ MODManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited AMMC-6333-W10 is an RF amplifier module designed for high-frequency applications. Operating across an 18GHz to 33GHz bandwidth, this component provides a typical gain of 22dB at 20GHz. The amplifier is rated for 23.5dBm P1dB at 20GHz, ensuring robust output power capabilities. It requires a 5V supply voltage and draws 230mA of current. The AMMC-6333-W10 features a surface mount configuration, packaged as a module for ease of integration into demanding VSAT systems. This device finds application in satellite communication infrastructure and other advanced RF systems requiring precise amplification in the millimeter-wave spectrum.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Frequency | 18GHz ~ 33GHz |
| RF Type | VSAT |
| Voltage - Supply | 5V |
| Gain | 22dB |
| Current - Supply | 230mA |
| Noise Figure | - |
| P1dB | 23.5dBm |
| Test Frequency | 20GHz ~ 30GHz |
| Supplier Device Package | Module |
