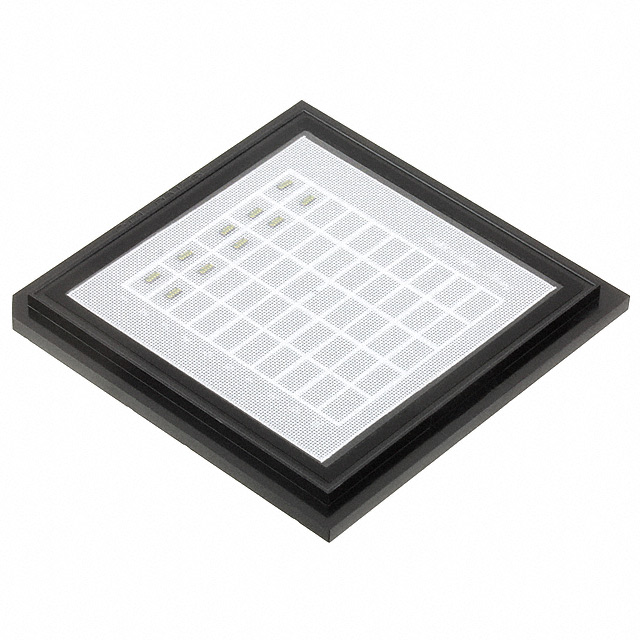

AMMC-6241-W10
IC RF AMP VSAT 26GHZ-43GHZ MODManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited AMMC-6241-W10 is a high-performance RF amplifier module designed for operation across the 26GHz to 43GHz spectrum. This surface-mount component offers a typical gain of 21dB and a noise figure of 3dB, making it suitable for demanding VSAT applications. The amplifier delivers a P1dB of 10dBm at a 3V supply voltage, drawing a current of 60mA. Tested at frequencies between 37GHz and 40GHz, the AMMC-6241-W10 finds application in satellite communications and other high-frequency wireless systems. The component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Frequency | 26GHz ~ 43GHz |
| RF Type | VSAT |
| Voltage - Supply | 3V |
| Gain | 21dB |
| Current - Supply | 60mA |
| Noise Figure | 3dB |
| P1dB | 10dBm |
| Test Frequency | 37GHz ~ 40GHz |
| Supplier Device Package | Module |
