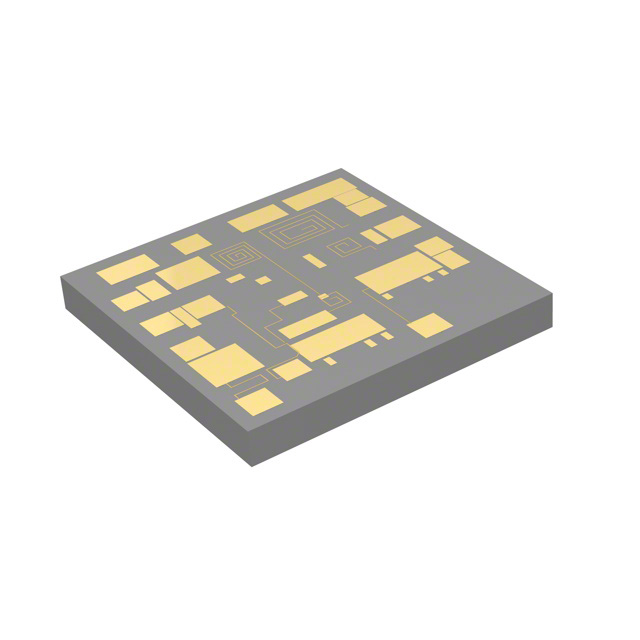

AMMC-5618-W50
IC RF AMP 6GHZ-20GHZ MODULEManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited's AMMC-5618-W50 is a high-performance RF amplifier module designed for operation across the 6GHz to 20GHz frequency range. This surface mount component delivers a gain of 14.5dB at a test frequency of 20GHz, with a noise figure of 4.4dB. The amplifier provides a P1dB output power of 19.5dBm. It operates from a nominal supply voltage of 5V and draws a typical current of 107mA. The AMMC-5618-W50 is supplied in a module package and is primarily utilized in demanding wireless communication and radar systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Frequency | 6GHz ~ 20GHz |
| RF Type | - |
| Voltage - Supply | 5V |
| Gain | 14.5dB |
| Current - Supply | 107mA |
| Noise Figure | 4.4dB |
| P1dB | 19.5dBm |
| Test Frequency | 20GHz |
| Supplier Device Package | Module |
