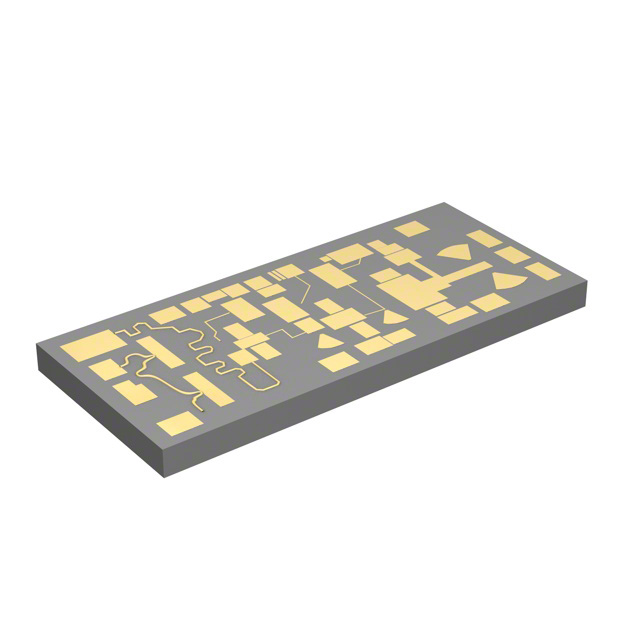

AMMC-5040-W50
IC RF AMP 20GHZ-45GHZ MODULEManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited AMMC-5040-W50 is a high-performance RF amplifier module designed for demanding applications in the 20GHz to 45GHz frequency range. This surface-mount component offers a typical gain of 25dB and a P1dB output power of 22.5dBm, ensuring robust signal amplification. Operating from a 4.5V supply with a current draw of 225mA, the AMMC-5040-W50 is engineered for reliability in advanced wireless infrastructure, satellite communications, and test and measurement equipment. The module package provides a compact and efficient solution for high-frequency designs.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Frequency | 20GHz ~ 45GHz |
| RF Type | - |
| Voltage - Supply | 4.5V |
| Gain | 25dB |
| Current - Supply | 225mA |
| Noise Figure | - |
| P1dB | 22.5dBm |
| Test Frequency | 27GHz ~ 29GHz |
| Supplier Device Package | Module |
