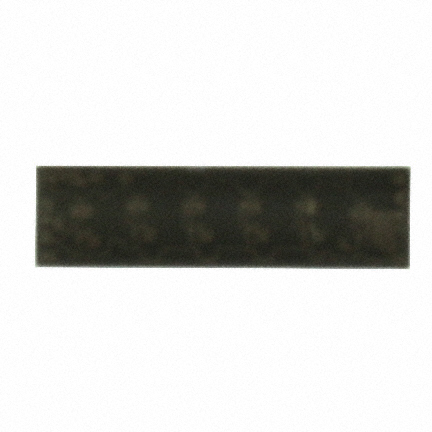

AMMC-5026-W10
IC RF AMP 2GHZ-35GHZ MODULEManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited AMMC-5026-W10 is a high-performance RF amplifier module designed for operation across a broad frequency range from 2GHz to 35GHz. This component offers a typical gain of 10.5dB at 10GHz, with a noise figure of 4.3dB, making it suitable for demanding RF applications. The amplifier delivers a P1dB output power of 24dBm. It operates from a supply voltage of 7V, drawing a quiescent current of 350mA. The AMMC-5026-W10 utilizes a surface mount package, supplied in trays for efficient integration into automated assembly processes. This module finds application in advanced wireless infrastructure, satellite communications, and test and measurement equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Frequency | 2GHz ~ 35GHz |
| RF Type | - |
| Voltage - Supply | 7V |
| Gain | 10.5dB |
| Current - Supply | 350mA |
| Noise Figure | 4.3dB |
| P1dB | 24dBm |
| Test Frequency | 10GHz |
| Supplier Device Package | Module |
