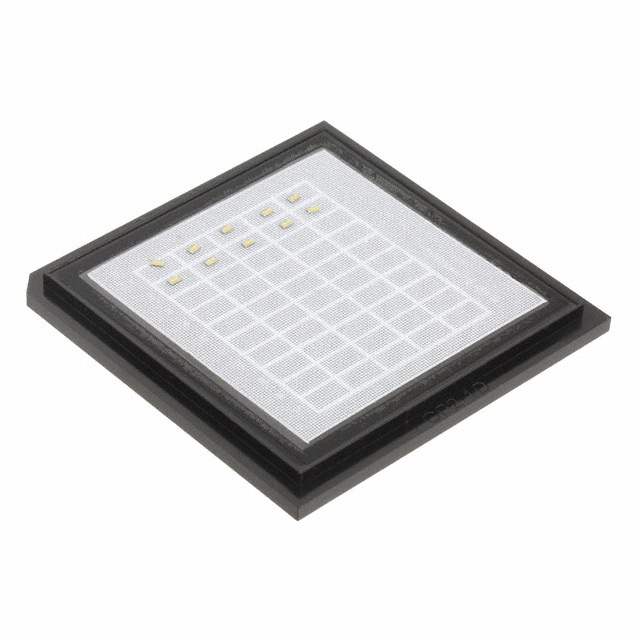

AMMC-5025-W10
IC RF AMP VSAT 30KHZ-80GHZ MODManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited's AMMC-5025-W10 is a radio frequency (RF) amplifier integrated circuit designed for a broad frequency range from 30kHz to 80GHz. This module-packaged device offers a nominal gain of 8dB, with a P1dB of 15dBm, tested at 40GHz. It operates from a 5V supply with a typical current draw of 100mA. The amplifier is suited for surface mount applications and is supplied in tray packaging. This component is utilized in VSAT (Very Small Aperture Terminal) systems and other demanding RF applications requiring high-frequency amplification.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Frequency | 30kHz ~ 80GHz |
| RF Type | VSAT |
| Voltage - Supply | 5V |
| Gain | 8dB |
| Current - Supply | 100mA |
| Noise Figure | - |
| P1dB | 15dBm |
| Test Frequency | 40GHz |
| Supplier Device Package | Module |
Request a Quote
