ALM-32220-BLKG
IC AMP GSM 1.7GHZ-2.7GHZ 20MCOBManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited ALM-32220-BLKG is a high-performance RF amplifier designed for demanding wireless applications. This component operates across a frequency range of 1.7GHz to 2.7GHz, supporting key communication standards including GSM, PCS, W-CDMA, and WiMAX. Key performance metrics include a typical gain of 14.8dB at 2GHz, a noise figure of 3.5dB, and a P1dB output power of 34.4dBm, ensuring robust signal amplification and transmission.

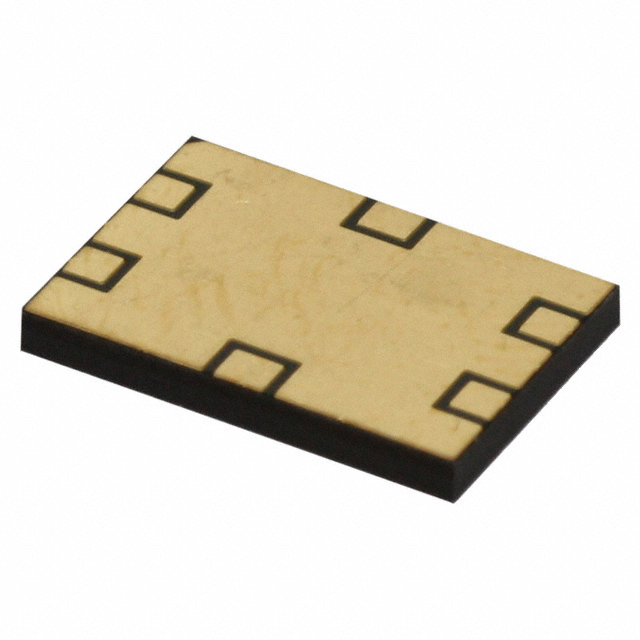

The ALM-32220-BLKG is packaged in a compact 20-MCOB (7x10) surface-mount module, facilitating efficient board layout. It is supplied on a strip for ease of automated assembly. The device operates from a 5V supply voltage with a current consumption of 800mA. This amplifier is suitable for integration into base stations, mobile infrastructure, and other advanced wireless communication systems where spectral efficiency and reliable performance are critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDownload Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 20-SMD Module, No Lead |
| Mounting Type | Surface Mount |
| Frequency | 1.7GHz ~ 2.7GHz |
| RF Type | GSM, PCS, W-CDMA, WiMAX |
| Voltage - Supply | 5V |
| Gain | 14.8dB |
| Current - Supply | 800mA |
| Noise Figure | 3.5dB |
| P1dB | 34.4dBm |
| Test Frequency | 2GHz |
| Supplier Device Package | 20-MCOB (7x10) |
