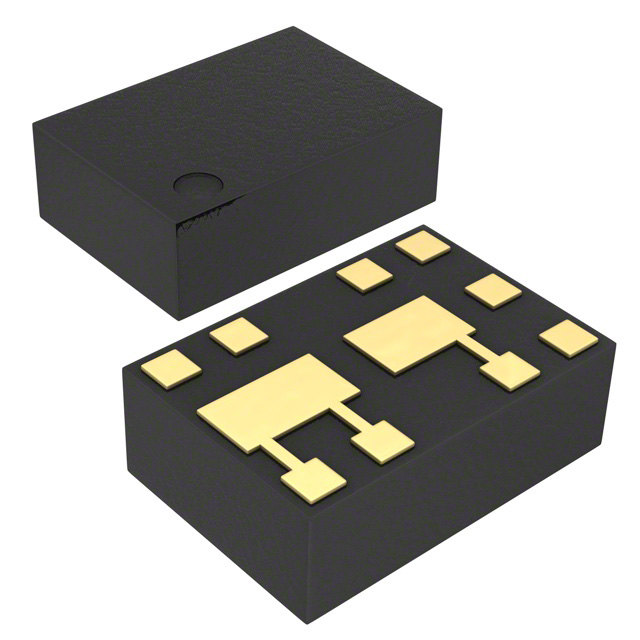

ALM-1912-BLKG
IC RF AMP GPS 9MCOBManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited ALM-1912-BLKG is a GPS RF amplifier integrated circuit designed for high-performance navigation applications. This component offers a typical gain of 19.3dB at a test frequency of 1.575GHz, coupled with a low noise figure of 1.62dB, ensuring excellent signal reception and processing for GPS signals. The device operates with a supply voltage of 4.5V and draws a supply current of 15mA, optimizing power efficiency. Packaged in a compact 9-MCOB (2.9x2) surface mount module, it is supplied on tape and reel for automated assembly. The ALM-1912-BLKG is suitable for use in automotive, telecommunications, and consumer electronics sectors where precise GNSS positioning is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-SMD Module, No Lead |
| Mounting Type | Surface Mount |
| Frequency | - |
| RF Type | GPS |
| Voltage - Supply | 4.5V |
| Gain | 19.3dB |
| Current - Supply | 15mA |
| Noise Figure | 1.62dB |
| P1dB | -8dBm |
| Test Frequency | 1.575GHz |
| Supplier Device Package | 9-MCOB (2.9x2) |
