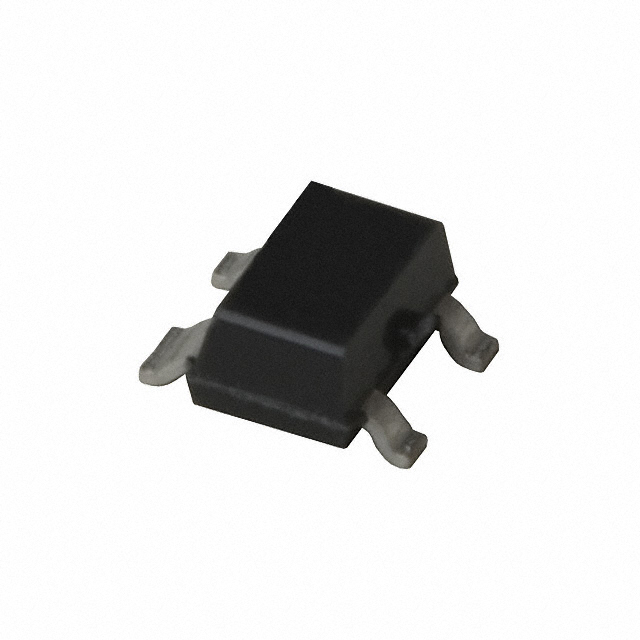

ADA-4643-TR1
IC AMP CELL 0HZ-2.5GHZ SOT343Manufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited ADA-4643-TR1 is an RF amplifier integrated circuit designed for high-frequency applications. This component operates across a wide frequency range from 0Hz to 2.5GHz, making it suitable for cellular, PCS, WLL, and WLAN systems. It offers a typical gain of 17dB at 900MHz and a noise figure of 4dB, ensuring efficient signal amplification with minimal distortion. The device features a P1dB compression point of 13.4dBm, indicating its capability to handle moderate signal levels. Supplied in a Tape & Reel (TR) package, the ADA-4643-TR1 utilizes a SOT-343, SC70 4-Lead surface mount package, facilitating integration onto printed circuit boards. It operates from a supply voltage of 3.2V to 3.9V with a typical current consumption of 35mA.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-82A, SOT-343 |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 2.5GHz |
| RF Type | Cellular, PCS, WLL, WLAN |
| Voltage - Supply | 3.2V ~ 3.9V |
| Gain | 17dB |
| Current - Supply | 35mA |
| Noise Figure | 4dB |
| P1dB | 13.4dBm |
| Test Frequency | 900MHz |
| Supplier Device Package | SOT-343, SC70 4-Lead |
