AFBR-S4N44P163
SENSOR PHOTODIODE 420NM ARRAYManufacturer: Broadcom Limited
Categories: Photodiodes
Quality Control: Learn More
Broadcom Limited AFBR-S4N44P163 is a 16-element photodiode array designed for precise light detection. This component features individual photodiodes with a peak sensitivity at 420nm, extending across a spectral range of 300nm to 900nm, encompassing UV and visible light. The AFBR-S4N series device is constructed for surface mount applications, offering an active area of 13.8mm². It operates as an avalanche photodiode, characterized by a typical dark current of 500nA and a maximum reverse voltage of 26.9V. Operating within a temperature range of -20°C to 50°C, this array is suitable for demanding applications in areas such as industrial automation, medical diagnostics, and scientific instrumentation where accurate spectral analysis and spatial light sensing are critical. The photodiode array is supplied in tray packaging.
Additional Information
Series: AFBR-S4NRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Array - 16 Element |
| Wavelength | 420nm |
| Mounting Type | Surface Mount |
| Diode Type | Avalanche |
| Operating Temperature | -20°C ~ 50°C |
| Response Time | - |
| Viewing Angle | - |
| Spectral Range | 300nm ~ 900nm |
| Color - Enhanced | Ultraviolet (UV) |
| Responsivity @ nm | - |
| Active Area | 13.8mm² |
| Current - Dark (Typ) | 500nA |
| Voltage - DC Reverse (Vr) (Max) | 26.9 V |
Request a Quote
Clients Also Buy

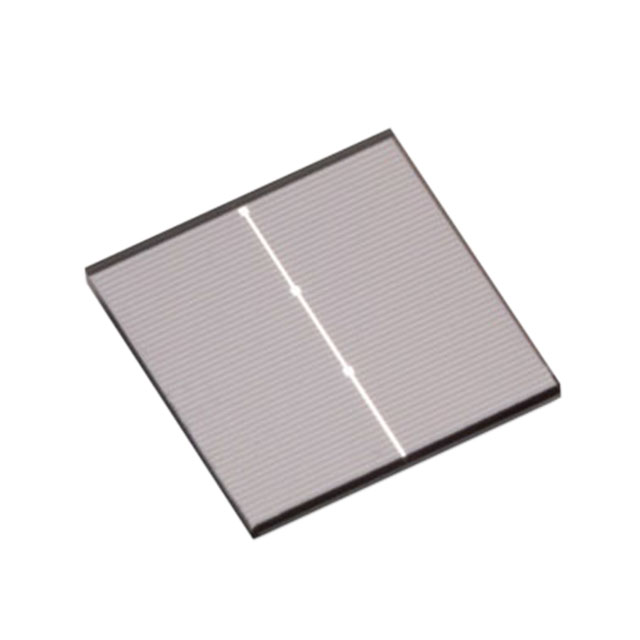

AFBR-S4N44C013
SENSOR OPT 420NM UV

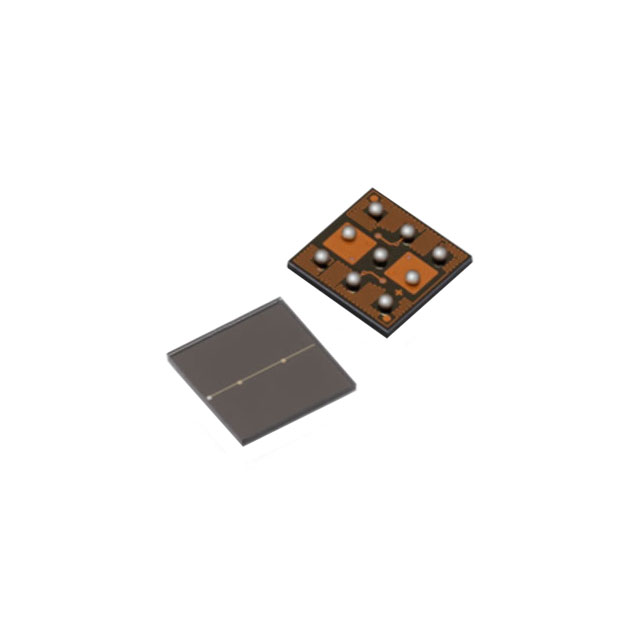

AFBR-S4N33C013
