HCPL-M456-060E

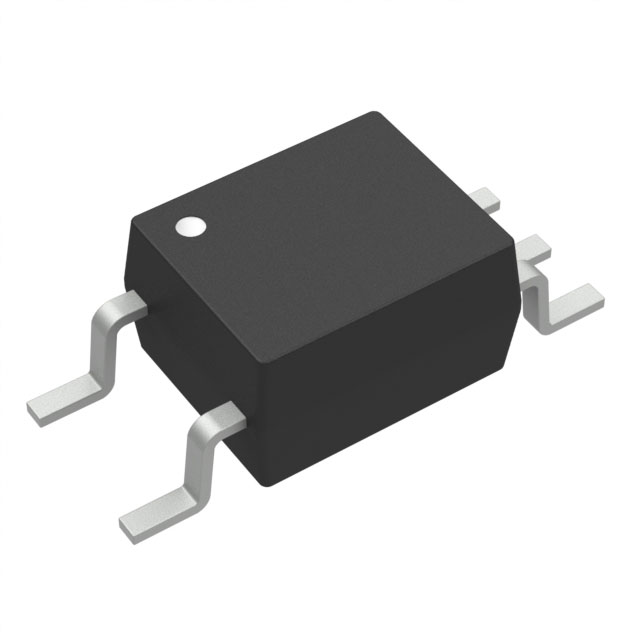

OPTOISO 3.75KV OPN COLLECTOR 5SOManufacturer: Broadcom Limited
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Broadcom Limited HCPL-M456-060E is a single-channel optoisolator featuring an open collector output with Schottky clamping. This device provides 3750Vrms isolation and exhibits a minimum Common Mode Transient Immunity (CMTI) of 15kV/µs. Designed for surface mount applications, it operates with a supply voltage range of 4.5V to 30V and a maximum forward current of 25mA. The output current per channel is rated at 15mA. Typical propagation delays are 550ns for tpLH and 400ns for tpHL. This optoisolator is suitable for industrial automation, power supply control, and motor drive applications where robust electrical isolation is critical. The HCPL-M456-060E is supplied in a 6-SOIC package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SOIC (0.173"", 4.40mm Width), 5 Leads |
| Output Type | Open Collector, Schottky Clamped |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Supply | 4.5V ~ 30V |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Data Rate | - |
| Input Type | DC |
| Voltage - Isolation | 3750Vrms |
| Current - DC Forward (If) (Max) | 25mA |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 5-SO |
| Rise / Fall Time (Typ) | - |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 550ns, 400ns |
| Number of Channels | 1 |
| Current - Output / Channel | 15 mA |
