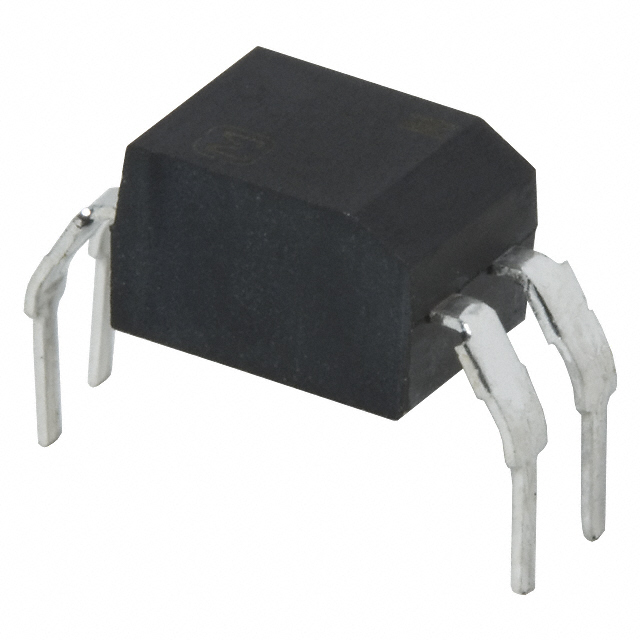

HCPL-817-W0CE
OPTOISOLATOR 5KV TRANSISTOR 4DIPManufacturer: Broadcom Limited
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Broadcom Limited HCPL-817-W0CE is a single-channel optoisolator featuring a transistor output. This component provides 5000Vrms of isolation, ensuring signal integrity and circuit protection in demanding applications. It operates with a DC input and offers a maximum forward current of 50 mA. The output current capability is also rated at 50 mA. Current transfer ratios range from a minimum of 200% at 5 mA input to a maximum of 400% at 5 mA input. The device has a typical forward voltage of 1.2V and a saturation voltage (Vce) of 200mV maximum. Rise and fall times are approximately 4µs and 3µs respectively. The HCPL-817-W0CE is housed in a 4-DIP package suitable for through-hole mounting and operates within a temperature range of -30°C to 100°C. This optoisolator is commonly utilized in industrial controls, power supplies, and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 4-DIP (0.400"", 10.16mm) |
| Output Type | Transistor |
| Mounting Type | Through Hole |
| Operating Temperature | -30°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 200% @ 5mA |
| Vce Saturation (Max) | 200mV |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Supplier Device Package | 4-DIP |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
