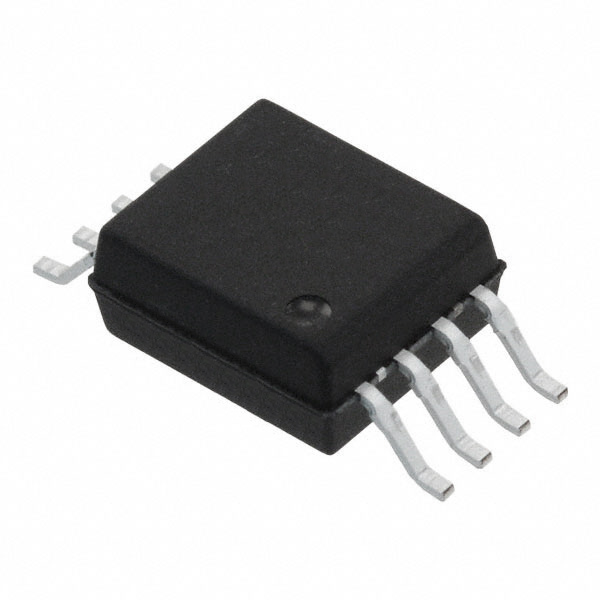

HCPL-0201#500
OPTOISO 3.75KV PUSH PULL 8SOManufacturer: Broadcom Limited
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Logic Output Optoisolator 5MBd Push-Pull, Totem Pole 3750Vrms 1 Channel 1kV/µs CMTI 8-SO Tall
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Push-Pull, Totem Pole |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 20V |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Data Rate | 5MBd |
| Input Type | DC |
| Voltage - Isolation | 3750Vrms |
| Current - DC Forward (If) (Max) | 10mA |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 8-SO Tall |
| Rise / Fall Time (Typ) | 30ns, 7ns |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 300ns, 300ns |
| Number of Channels | 1 |
| Current - Output / Channel | 25 mA |
Request a Quote
