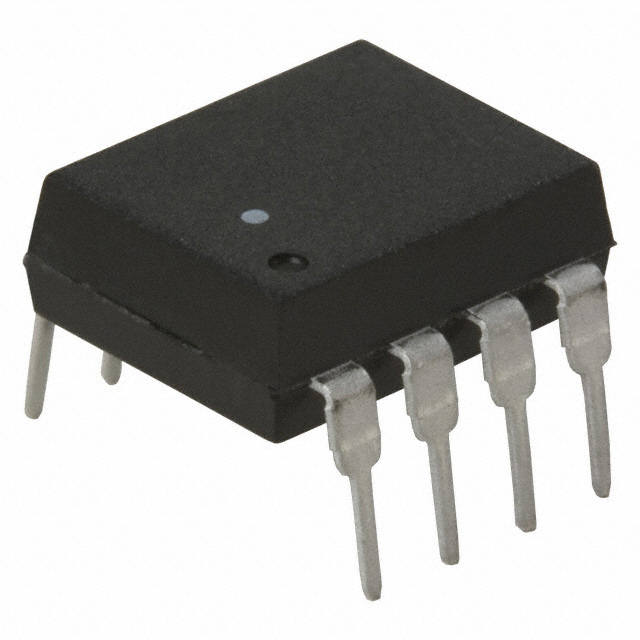

HCNR200-000E
OPTOISO 5KV LINEAR PHVOLT 8DIPManufacturer: Broadcom Limited
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Optoisolator Photovoltaic, Linearized Output 5000Vrms 1 Channel 8-DIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.400"", 10.16mm) |
| Output Type | Photovoltaic, Linearized |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Input Type | DC |
| Current - Output / Channel | - |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 0.25% @ 10mA |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Max) | 0.75% @ 10mA |
| Supplier Device Package | 8-DIP |
| Voltage - Output (Max) | - |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
