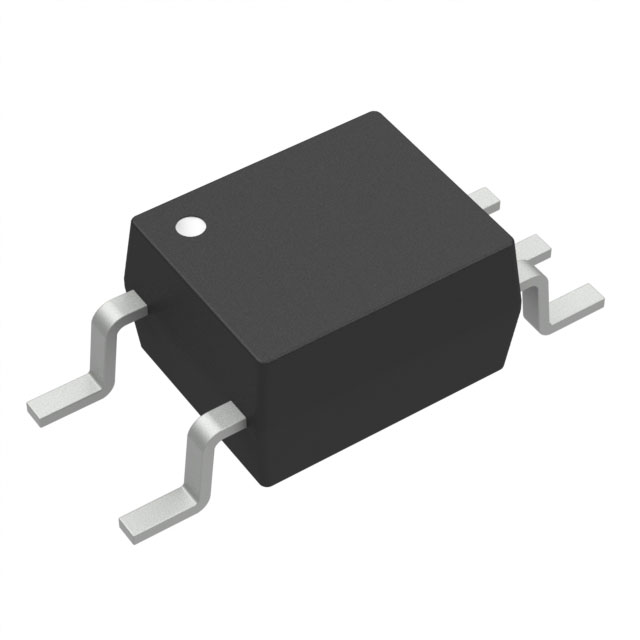

ACPL-M71T-000E
OPTOISO 4KV PUSH PULL 5SOICManufacturer: Broadcom Limited
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Logic Output Optoisolator Push-Pull, Totem Pole 4000Vrms 1 Channel 15kV/µs CMTI 5-SO
Additional Information
Series: R²Coupler™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SOIC (0.173"", 4.40mm Width), 5 Leads |
| Output Type | Push-Pull, Totem Pole |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Data Rate | - |
| Input Type | DC |
| Voltage - Isolation | 4000Vrms |
| Current - DC Forward (If) (Max) | 20mA |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 5-SO |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 35ns, 35ns |
| Grade | Automotive |
| Number of Channels | 1 |
| Qualification | AEC-Q100 |
Request a Quote
