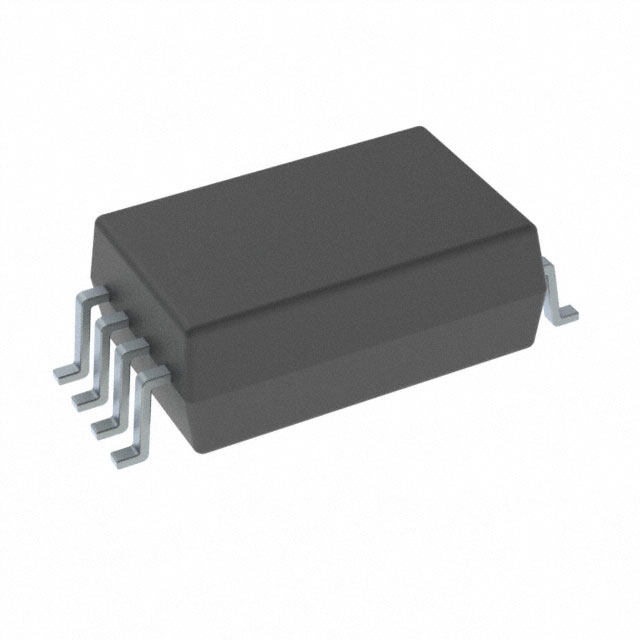

ACNU-250L-000E
11MM OPTOCOUPLER (1MBD)Manufacturer: Broadcom Limited
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Optoisolator Transistor Output 5000Vrms 1 Channel 8-SO Stretched
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.378"", 9.60mm Width) |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Input Type | DC |
| Current - Output / Channel | 12mA |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 23% @ 12mA |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Max) | 53% @ 12mA |
| Supplier Device Package | 8-SO Stretched |
| Voltage - Output (Max) | 24V |
| Turn On / Turn Off Time (Typ) | 700ns, 400ns |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 20 mA |
