HCPL-0631-000E
OPTOISO 3.75KV 2CH OPEN COLL 8SOManufacturer: Broadcom Limited
Categories: Logic Output Optoisolators
Quality Control: Learn More
Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 2 Channel 10kV/µs CMTI 8-SO Tall
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Open Collector, Schottky Clamped |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Data Rate | 10MBd |
| Input Type | DC |
| Voltage - Isolation | 3750Vrms |
| Current - DC Forward (If) (Max) | 15mA |
| Inputs - Side 1/Side 2 | 2/0 |
| Supplier Device Package | 8-SO Tall |
| Rise / Fall Time (Typ) | 24ns, 10ns |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Number of Channels | 2 |
| Current - Output / Channel | 50 mA |
Request a Quote
Clients Also Buy

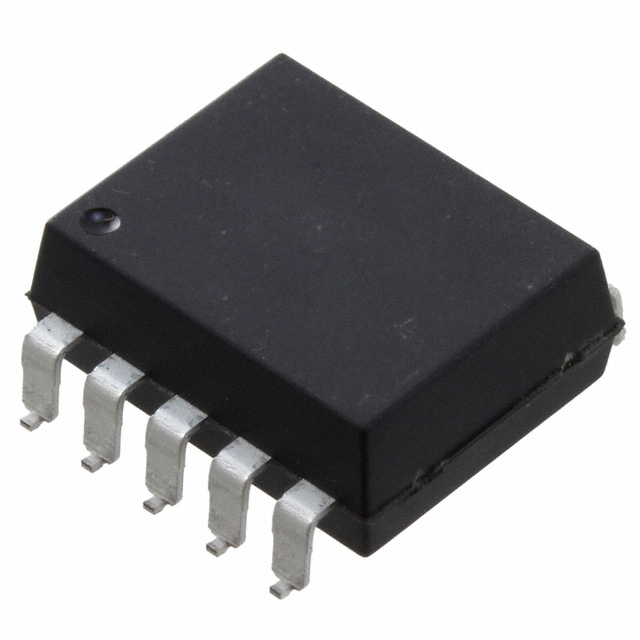

ACNV2601-500E
OPTOISO 7.5KV OPEN COLL 10DIP GW

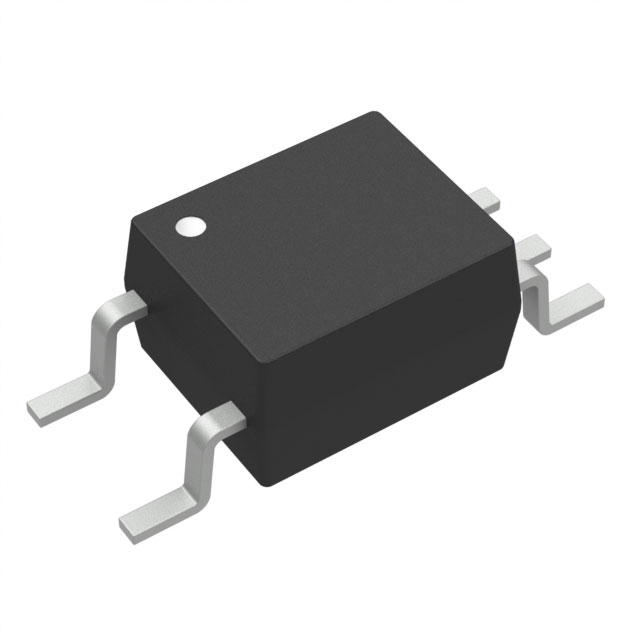

ACPL-M61L-000E
