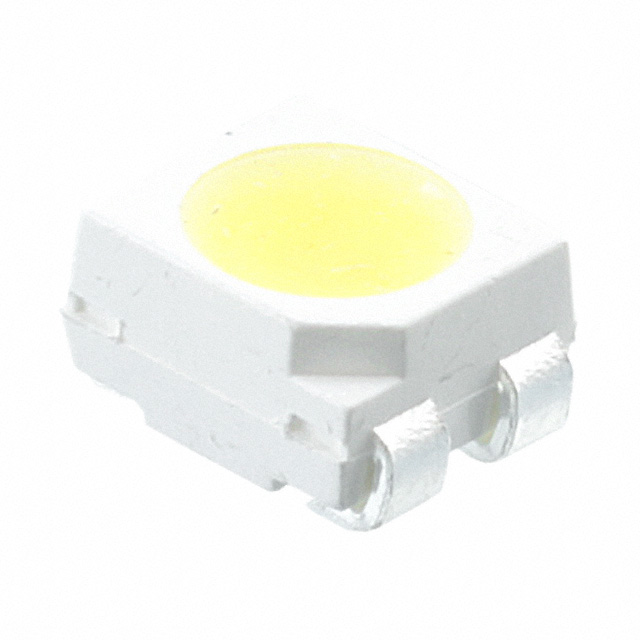

ASMT-QWBF-NKL0E
LED COOL WHITE 7250K 4PLCCManufacturer: Broadcom Limited
Categories: LED White Lighting
Quality Control: Learn More
LED Lighting - White, Cool 7250K (4500K ~ 10000K) 3.3V 150mA 120° 4-PLCC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | White, Cool |
| Size / Dimension | 0.126"" L x 0.110"" W (3.20mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 150mA |
| Supplier Device Package | 4-PLCC |
| Lumens/Watt @ Current - Test | 94 lm/W |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| CCT (K) | 7250K (4500K ~ 10000K) |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 49lm |
| Flux @ 85°C, Current - Test | 42lm |
