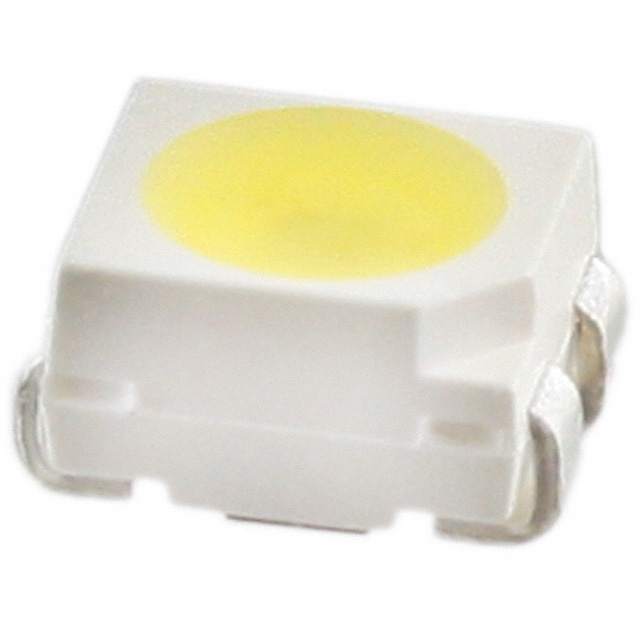

ASMT-QWBC-NHJ0E
LED COOL WHITE 7250K 4PLCCManufacturer: Broadcom Limited
Categories: LED White Lighting
Quality Control: Learn More
Broadcom Limited ASMT-QWBC-NHJ0E is a surface-mount LED designed for cool white illumination with a Correlated Color Temperature (CCT) of 7250K, within a 4500K to 10000K range. This 4-PLCC package component operates at a forward voltage of 3.4V and a maximum forward current of 150mA. It delivers a typical luminous flux of 34 lumens at 150mA, with a luminous efficacy of 67 lm/W. The viewing angle is 120 degrees. The device measures 3.20mm in length by 2.80mm in width and has a maximum seated height of 2.10mm. This component is supplied in Tape & Reel packaging. These LEDs are utilized in applications requiring high-efficiency, cool white lighting, including general illumination, signage, and automotive lighting.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | White, Cool |
| Size / Dimension | 0.126"" L x 0.110"" W (3.20mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 150mA |
| Supplier Device Package | 4-PLCC |
| Lumens/Watt @ Current - Test | 67 lm/W |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| CCT (K) | 7250K (4500K ~ 10000K) |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 34lm (26lm ~ 43lm) |
| Flux @ 85°C, Current - Test | 31lm |
