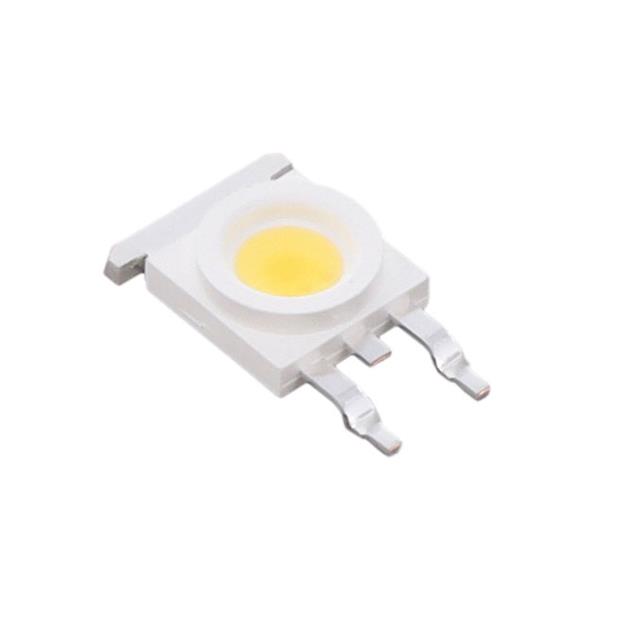

ASMT-MW06-NLM01
LED MOONSTONE COOL WHT 7000K SMDManufacturer: Broadcom Limited
Categories: LED White Lighting
Quality Control: Learn More
Broadcom Limited ASMT-MW06-NLM01 is a Moonstone® series cool white LED with a Correlated Color Temperature (CCT) of 7000K, within a range of 4000K to 10000K. This surface mount component is packaged in a TO-252-3, DPAK configuration, also known as SC-63, with a 110° viewing angle. It operates at a typical forward voltage of 3.2V and a test current of 350mA, delivering a typical luminous flux of 88 lumens at 25°C, with a lumens per watt rating of 79 lm/W at the test current. The maximum continuous current rating is 500mA. The device dimensions are 8.50mm x 8.50mm with a maximum seated height of 3.40mm. This component finds application in general lighting solutions and automotive lighting systems. It is supplied on a tape and reel (TR).
Additional Information
Series: Moonstone®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Color | White, Cool |
| Size / Dimension | 0.335"" L x 0.335"" W (8.50mm x 8.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 110° |
| Current - Max | 500mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 79 lm/W |
| Height - Seated (Max) | 0.134"" (3.40mm) |
| CCT (K) | 7000K (4000K ~ 10000K) |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 88lm (Typ) |
| Flux @ 85°C, Current - Test | - |
