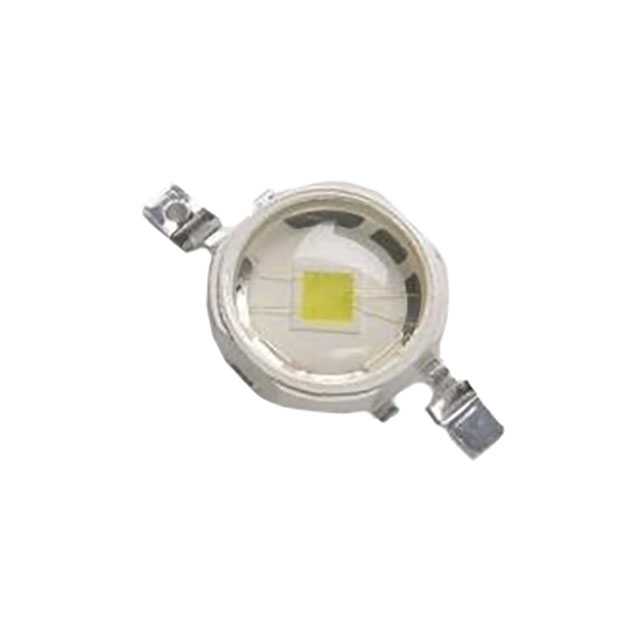

ASMT-AW00-NUW01
LED ASMT COOL WHT 7250K 2SMDManufacturer: Broadcom Limited
Categories: LED White Lighting
Quality Control: Learn More
Broadcom Limited ASMT-AW00-NUW01, an ASMT-Ax00 series LED, offers cool white illumination with a typical Correlated Color Temperature (CCT) of 7250K, spanning a range of 4500K to 10000K. This surface-mount component features a 2-SMD, Gull Wing package and operates at a forward voltage of 3.2V. Designed for a test current of 350mA, it delivers a luminous flux of 100 lumens (Typ) with an efficacy of 89 lm/W. The maximum current rating is 500mA, and the viewing angle is 140°. Its dimensions are 0.291 inches (7.40mm) square with a maximum seated height of 0.165 inches (4.20mm). This component is supplied in Tape & Reel packaging. It finds application in various lighting solutions across industries such as automotive, industrial, and general illumination.
Additional Information
Series: ASMT-Ax00RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Color | White, Cool |
| Size / Dimension | 0.291"" L x 0.291"" W (7.40mm x 7.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 140° |
| Current - Max | 500mA |
| Supplier Device Package | 2-SMD |
| Lumens/Watt @ Current - Test | 89 lm/W |
| Height - Seated (Max) | 0.165"" (4.20mm) |
| CCT (K) | 7250K (4500K ~ 10000K) |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 100lm (Typ) |
| Flux @ 85°C, Current - Test | - |
