ASMF-PWG2-N45E0
LED COOL WHITE 5000K 3030Manufacturer: Broadcom Limited
Categories: LED White Lighting
Quality Control: Learn More

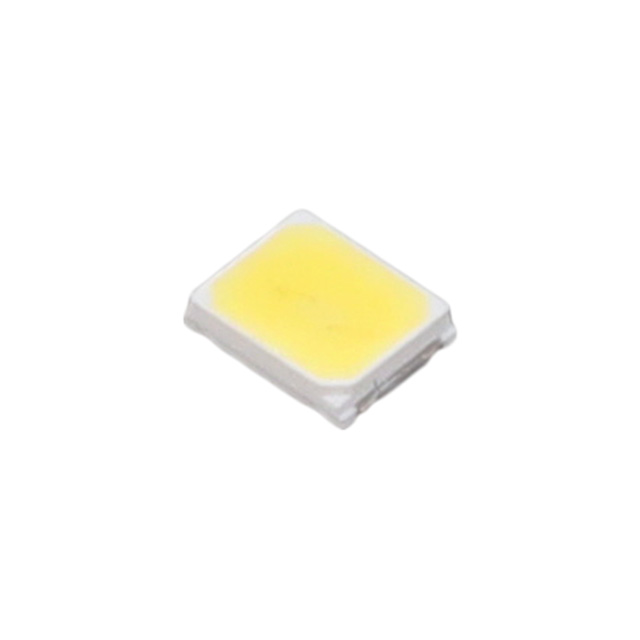

Broadcom Limited ASMF-PWG2-N45E0 is a surface-mount LED designed for cool white illumination. This component features a color temperature of 5000K, providing a crisp, cool white output with a typical forward voltage of 6.3V. Operating at a test current of 150mA, it delivers a luminous flux of 105 lumens and an efficacy of 111 lumens per watt. The LED offers a wide 120° viewing angle and is housed in a 1212 (3030 Metric) package measuring 3.00mm x 3.00mm with a maximum seated height of 0.80mm. With a maximum forward current of 180mA and a Color Rendering Index (CRI) of 80, this component is suitable for general lighting, architectural lighting, and automotive interior applications. It is supplied in a Tape & Reel (TR) package for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 6.3V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 180mA |
| Supplier Device Package | 3030 |
| Lumens/Watt @ Current - Test | 111 lm/W |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 105lm (Typ) |
| Flux @ 85°C, Current - Test | - |
