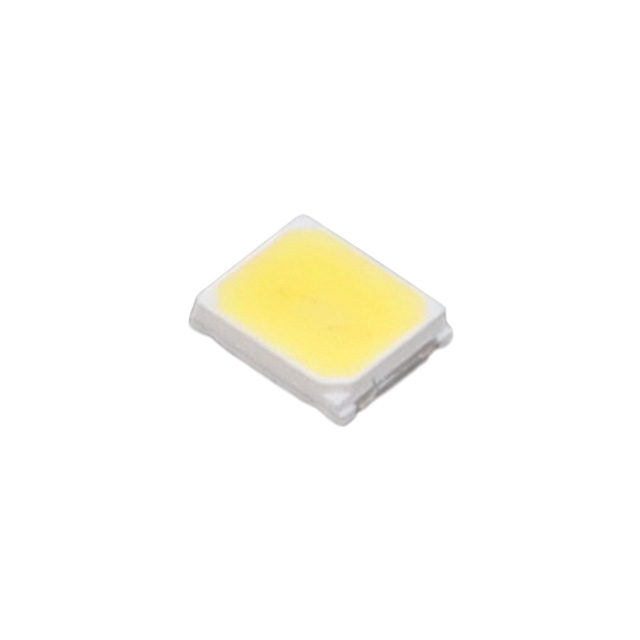

ASMF-LWG4-NRUHD
LED COOL WHITE 6500K 3030Manufacturer: Broadcom Limited
Categories: LED White Lighting
Quality Control: Learn More
Broadcom Limited ASMF-LWG4-NRUHD is a cool white LED with a Correlated Color Temperature (CCT) of 6500K. This 3030 metric package component offers a typical forward voltage of 2.9V and a test current of 65mA, resulting in a luminous efficacy of 143 lm/W. With a wide viewing angle of 120°, it delivers 27 lumens at the test conditions. The LED features a Color Rendering Index (CRI) of 80 and is supplied in a Tape & Reel package. Its compact dimensions of 3.00mm x 3.00mm and a maximum seated height of 0.80mm make it suitable for surface mount applications in general lighting and signage.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Current - Test | 65mA |
| Viewing Angle | 120° |
| Current - Max | 240mA |
| Supplier Device Package | 3030 |
| Lumens/Watt @ Current - Test | 143 lm/W |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 27lm (Typ) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
