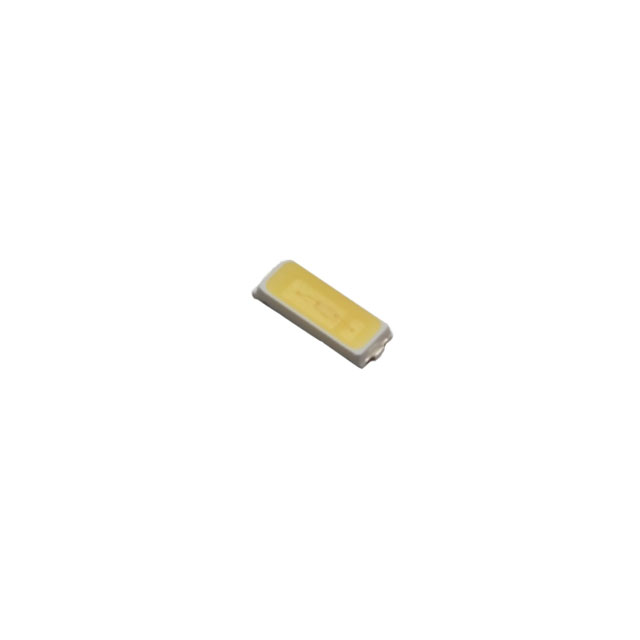

ASMD-LWG3-NQTHD
LED COOL WHITE 6500K 2SMDManufacturer: Broadcom Limited
Categories: LED White Lighting
Quality Control: Learn More
Broadcom Limited ASMD-LWG3-NQTHD is a cool white LED component with a Correlated Color Temperature (CCT) of 6500K. This 1206 (3014 Metric) package device features a typical forward voltage of 2.99V and a maximum forward current of 200mA, with a test current of 65mA. At this test current, it provides a luminous flux of 26 lumens and a luminous efficacy of 134 lm/W. The component offers a wide viewing angle of 120 degrees and a Color Rendering Index (CRI) of 80. Its compact dimensions are 3.00mm L x 1.40mm W with a maximum seated height of 0.90mm. The ASMD-LWG3-NQTHD is supplied in a 2-SMD configuration on tape and reel, suitable for surface mount applications. This component finds use in various lighting and display applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3014 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.118"" L x 0.055"" W (3.00mm x 1.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.99V |
| Current - Test | 65mA |
| Viewing Angle | 120° |
| Current - Max | 200mA |
| Supplier Device Package | 2-SMD |
| Lumens/Watt @ Current - Test | 134 lm/W |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 26lm (22lm ~ 30lm) |
| Flux @ 85°C, Current - Test | - |
