ASM6-SWD1-NQTHH
LED ASM6-SWX1 WHT 6500K 3SMDManufacturer: Broadcom Limited
Categories: LED White Lighting
Quality Control: Learn More
Broadcom Limited ASM6-SWD1-NQTHH is a white LED within the ASM6-SWx1-NxxxH series, offering a cool 6500K correlated color temperature. This surface-mount component features a 130° viewing angle and operates with a typical forward voltage of 3.3V at a test current of 700mA, delivering 264 lumens. The LED is rated for a maximum current of 1A and exhibits a typical luminous efficacy of 114 lm/W at the test current. Its compact 3-SMD, No Lead package measures 0.136" x 0.136" (3.45mm x 3.45mm) with a maximum seated height of 0.081" (2.05mm). The component boasts a typical Color Rendering Index (CRI) of 80. It is supplied on tape and reel (TR) for automated assembly. This LED is suited for general illumination and display applications.
Additional Information
Series: ASM6-SWx1-NxxxHRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Color | White, Cool |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 700mA |
| Viewing Angle | 130° |
| Current - Max | 1A |
| Supplier Device Package | 3-SMD |
| Lumens/Watt @ Current - Test | 114 lm/W |
| Height - Seated (Max) | 0.081"" (2.05mm) |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 80 (Typ) |
| Flux @ 25°C, Current - Test | 264lm (Typ) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

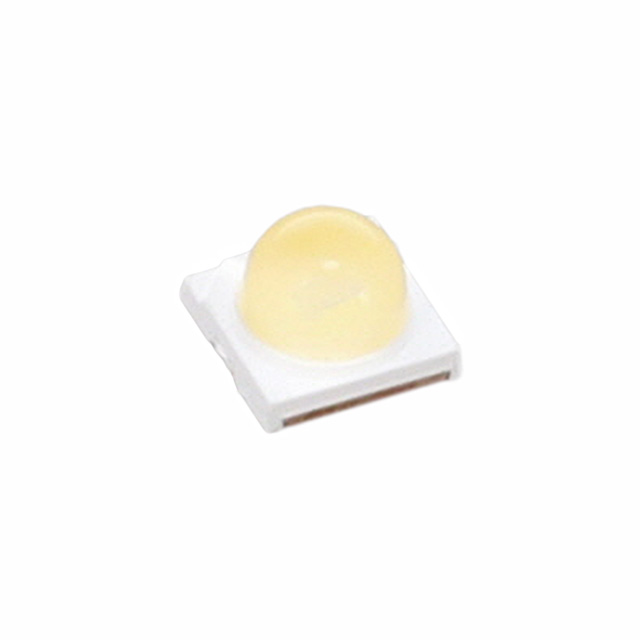

ASM6-SW91-NPRHH
