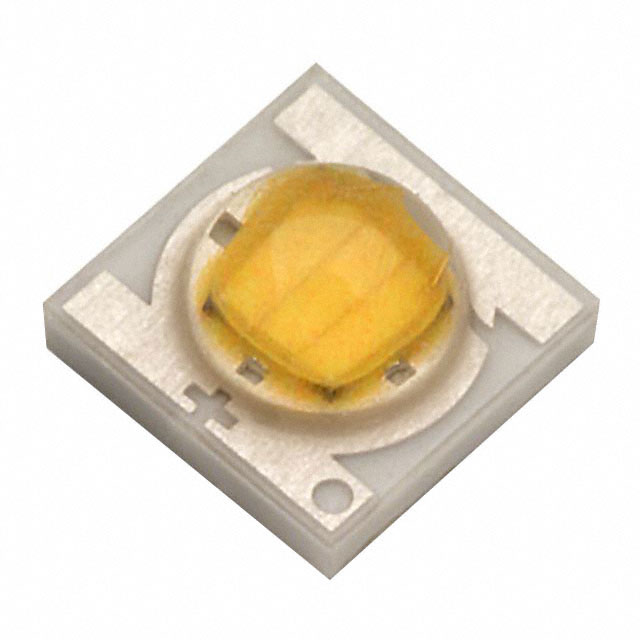

ASM3-SWD1-NPRHH
LED HORT COOL WHT 7500K 3535Manufacturer: Broadcom Limited
Categories: LED White Lighting
Quality Control: Learn More
Broadcom Limited ASM3-SWD1-NPRHH is a cool white LED designed for horticultural applications. This 3535 metric package component offers a correlated color temperature (CCT) of 7500K, falling within the 5000K to 10000K range. It operates at a forward voltage of 3V and a test current of 350mA, with a maximum forward current capability of 700mA. The luminous flux at the test current is specified at 125mW. Featuring a wide 130° viewing angle, this surface-mount LED has dimensions of 3.45mm x 3.45mm and a seated height of 0.085 inches (2.15mm). The component is supplied in Tape & Reel packaging.
Additional Information
Series: HorticultureRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3V |
| Current - Test | 350mA |
| Viewing Angle | 130° |
| Current - Max | 700mA |
| Supplier Device Package | 3535 |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.085"" (2.15mm) |
| CCT (K) | 7500K (5000K ~ 10000K) |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | 125mW (115mW ~ 154mW) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy
ASM3-S3D0-ALN0H
LED HORTICULTURE FAR RED 3535

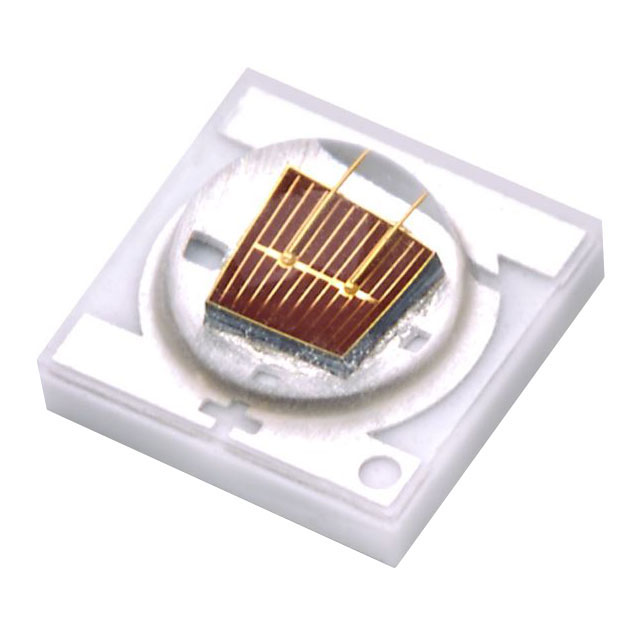

ASM3-SDD0-ANP0H
LED HORTICULTURE DEEP RED 3535

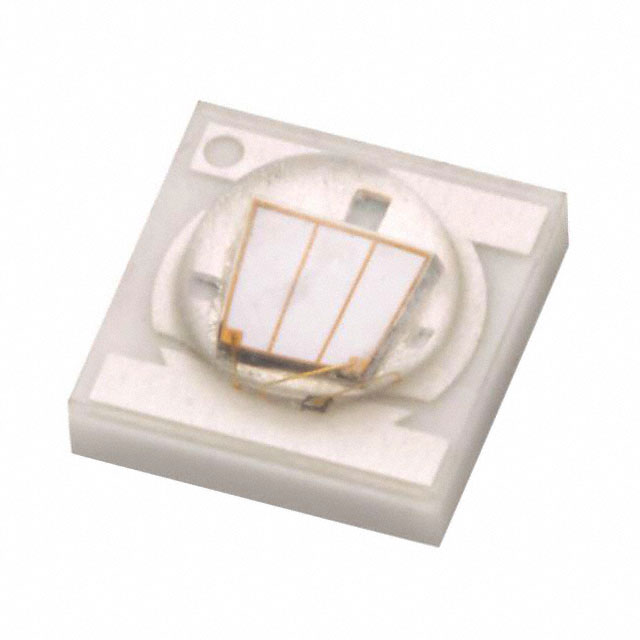

ASM3-SLD1-NST0H
