HSMS-C660
LED RED DIFFUSED CHIP SMD R/AManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

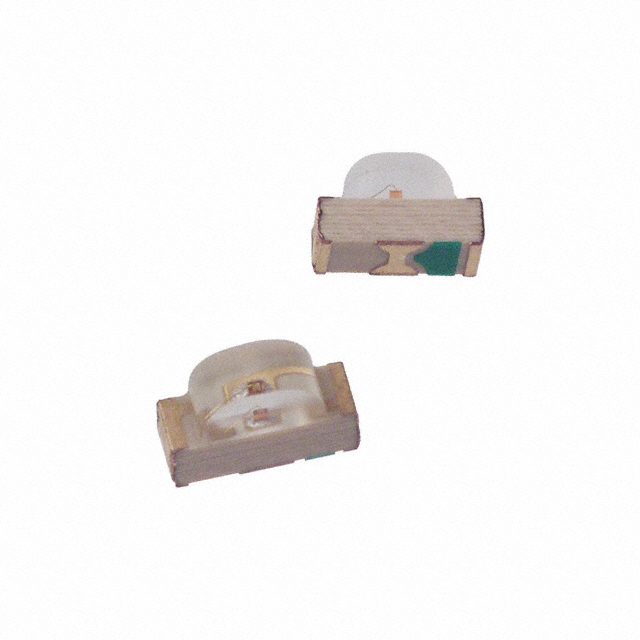

Broadcom Limited HSMS-C660 is a red diffused LED designed for surface mount, right-angle applications. This discrete indicator component operates with a typical forward voltage of 1.9V and a test current of 20mA, producing a dominant wavelength of 626nm and a peak wavelength of 639nm. The LED features a diffused lens with a domed top, measuring 2.00mm x 1.00mm, and offers a wide viewing angle of 155°. Supplied in a 2-SMD, No Lead package, the HSMS-C660 is presented on tape and reel for automated assembly. Its specifications make it suitable for various indication purposes across industrial and consumer electronics sectors. The component's dimensions are 3.00mm in length and 2.00mm in width, with a maximum height of 1.00mm.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Red |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 155° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 639nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
