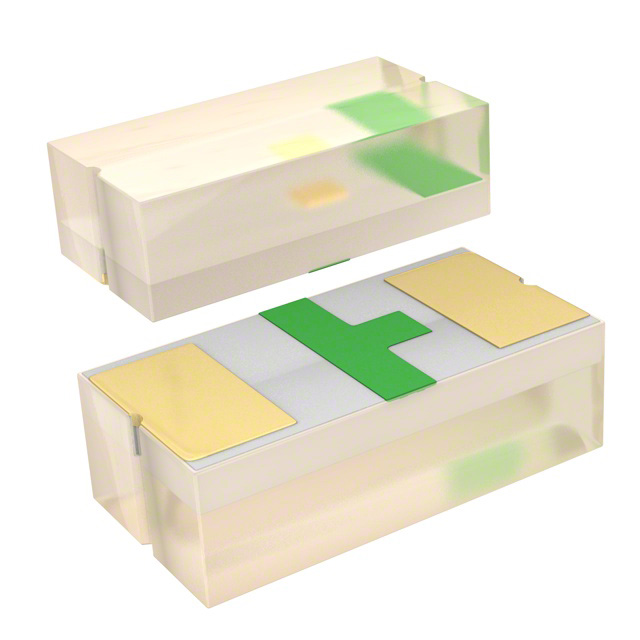

HSMR-C280
LED BLUE DIFFUSED 0402 SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Blue 465nm LED Indication - Discrete 3.3V 0402 (1005 Metric)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Color | Blue |
| Size / Dimension | 1.00mm L x 0.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 80mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 0.50mm |
| Wavelength - Peak | 459nm |
| Wavelength - Dominant | 465nm |
| Supplier Device Package | 0402 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.50mm |
