HSMJ-A430-W50M1
LED RED CLEAR 4PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

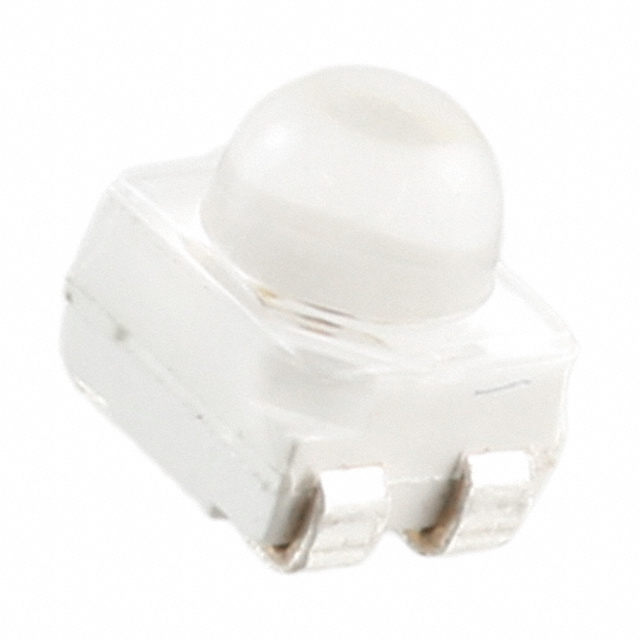

Broadcom Limited HSMJ-A430-W50M1 is a red indication LED. This surface mount component, packaged in a 4-PLCC, features a clear, colorless lens with a domed top, providing a 30° viewing angle. It emits light at a dominant wavelength of 615nm and a peak wavelength of 621nm, with a typical forward voltage of 2.2V and a test current of 50mA, yielding a millicandela rating of 2300mcd. The dimensions are 3.20mm L x 2.80mm W, with a maximum height of 3.87mm. This component is commonly utilized in automotive, industrial, and consumer electronics applications for status indication. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2300mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | 30° |
| Height (Max) | 3.87mm |
| Wavelength - Peak | 621nm |
| Wavelength - Dominant | 615nm |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | - |
