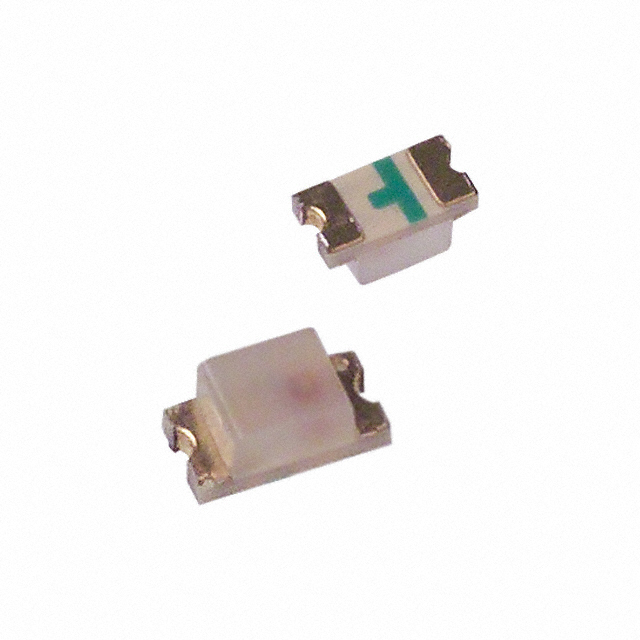

HSMH-C190
LED RED DIFFUSED CHIP SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Red 639nm LED Indication - Discrete 1.8V 0603 (1608 Metric)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Red |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 17mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 170° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 639nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.80mm |
